Door Module: Locations

Harness Routing Views

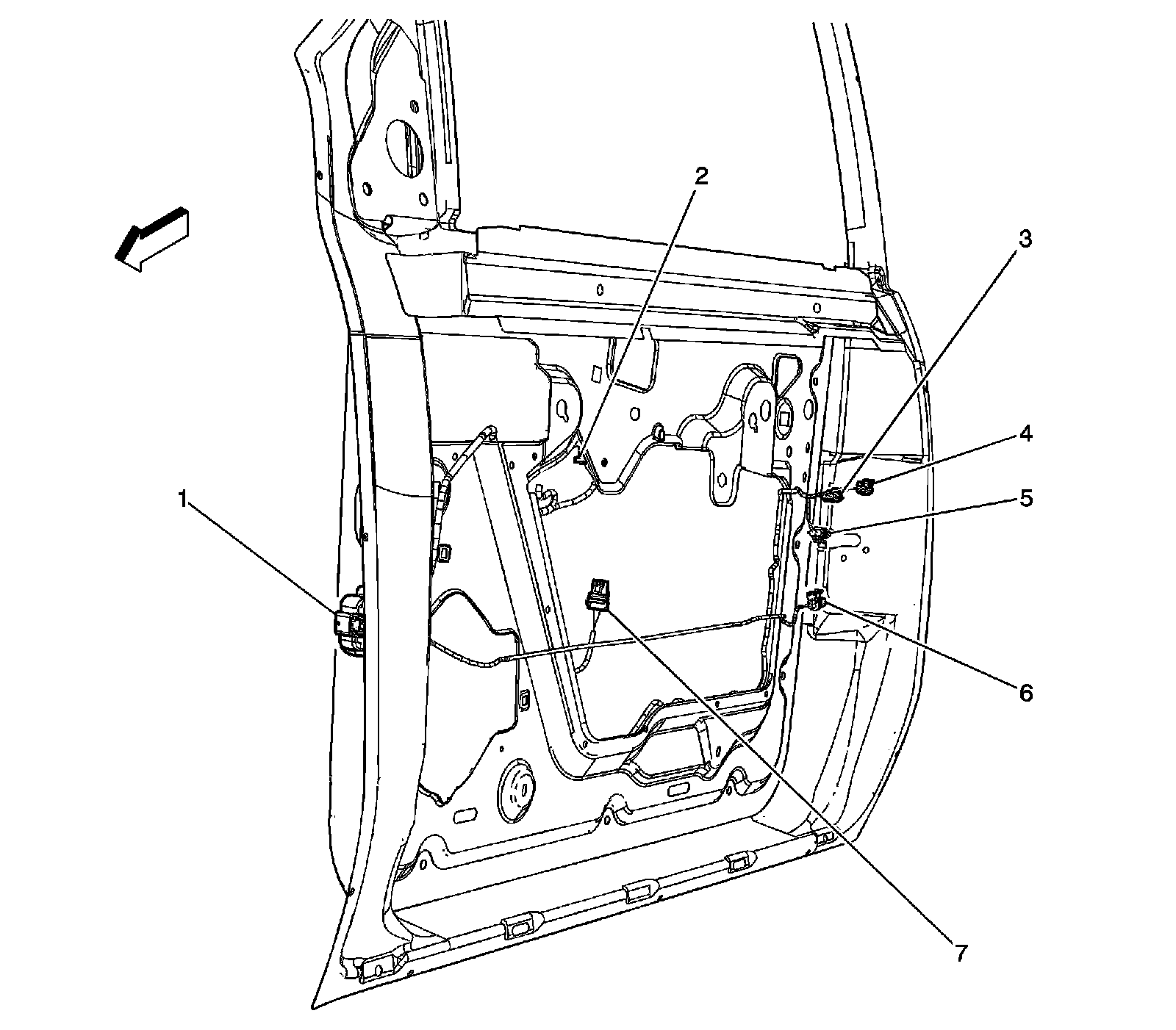

Left Front Door Harness Routing




1 - C500
2 - Driver Door Module (DDM) C2
3 - Door Latch Assembly - Driver C1
4 - Door Latch Assembly - Driver C3
5 - Door Latch Assembly - Driver C2
6 - Inflatable Restraint Side Impact Sensor (SIS) - Left
7 - Window Motor - Driver

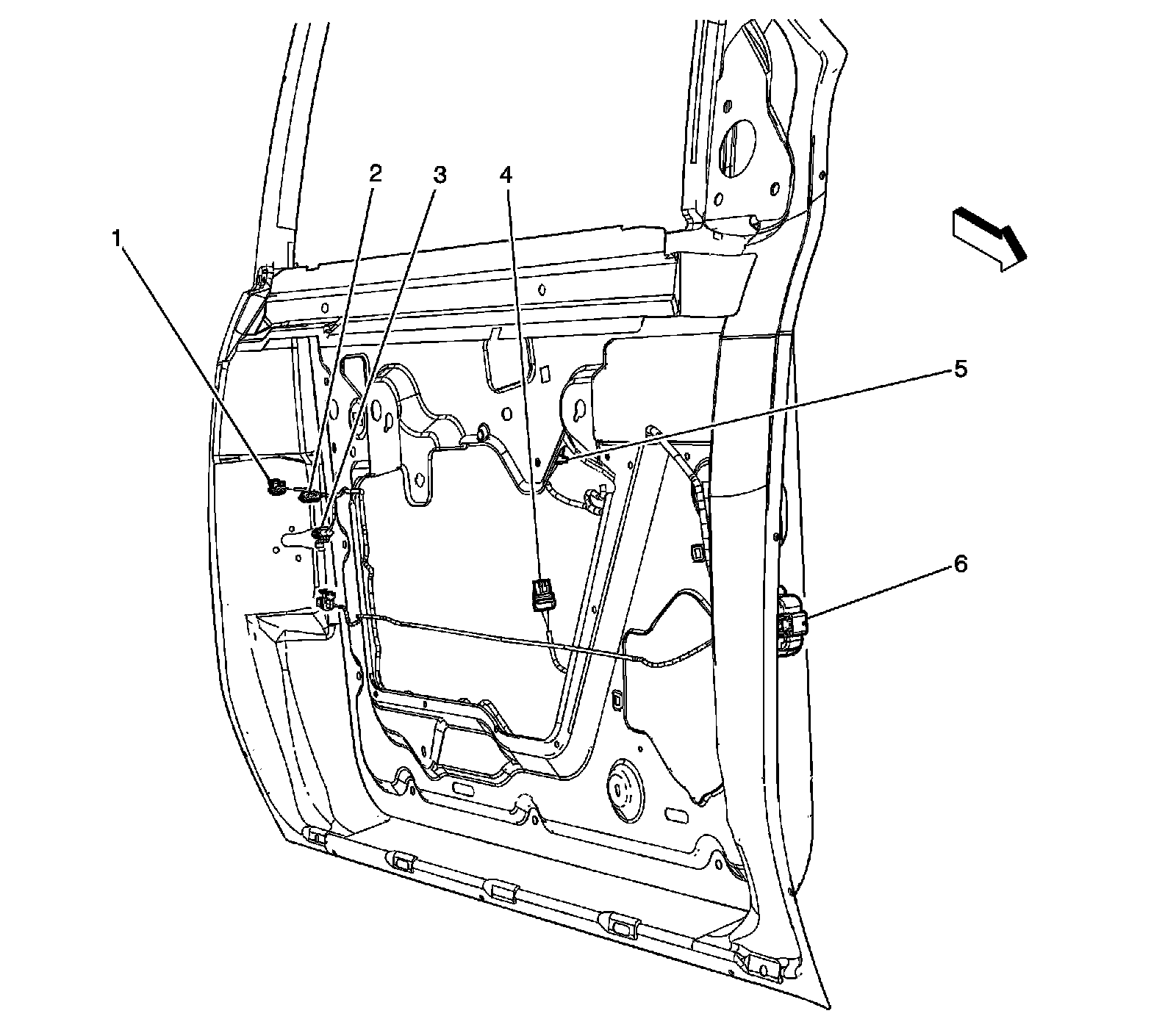

Right Front Door Harness Routing




1 - Door Latch Assembly - Passenger C1
2 - Door Latch Assembly - Passenger C2
3 - Inflatable Restraint Side Impact Sensor (SIS) - Right
4 - Window Motor - Front Passenger
5 - Front Passenger Door Module (FPDM) C1
6 - C600
