Brake Fluid Level Sensor/Switch: Service and Repair




Brake Fluid Level Indicator Switch Replacement

Removal Procedure




1. Disconnect the brake fluid level indicator switch electrical connector.
2. From the inboard side of the master cylinder reservoir, carefully compress the locking tabs on the brake fluid level indicator switch.

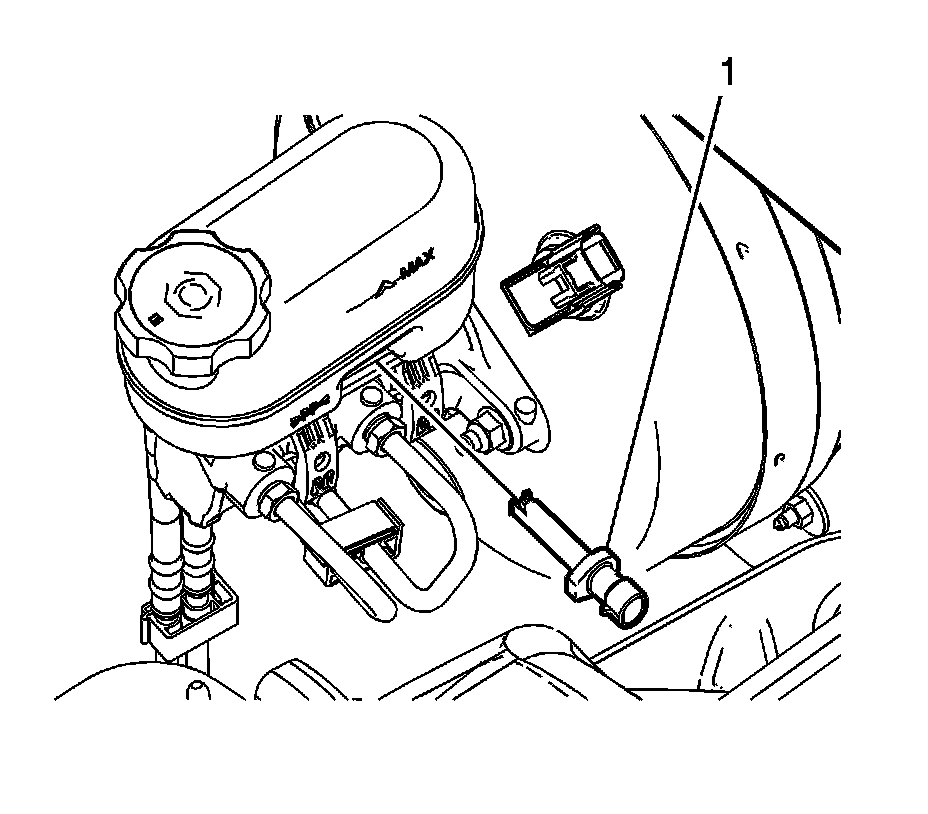

3. Remove the brake fluid level indicator switch (1) from the master cylinder reservoir.

Installation Procedure




1. Install the brake fluid level indicator switch (1) to the master cylinder reservoir.
Ensure the brake fluid level indicator switch locking tabs are fully engaged into the master cylinder reservoir.
2. Connect the brake fluid level indicator switch electrical connector.
