Ignition Coil




Component Connector End Views

Ignition Coil 1 (5.3L)





Ignition Coil 2 (5.3L)

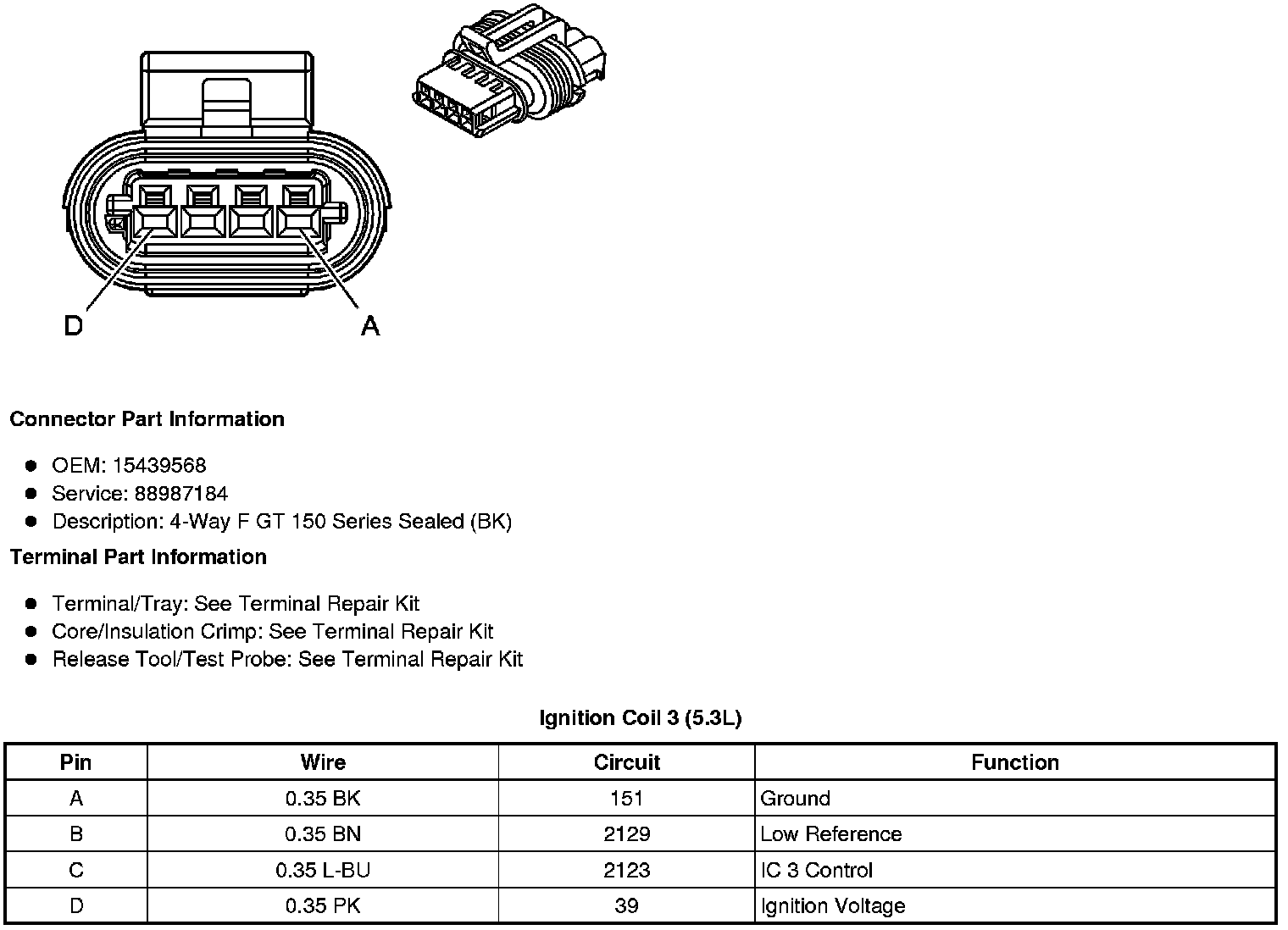

Ignition Coil 3 (5.3L)

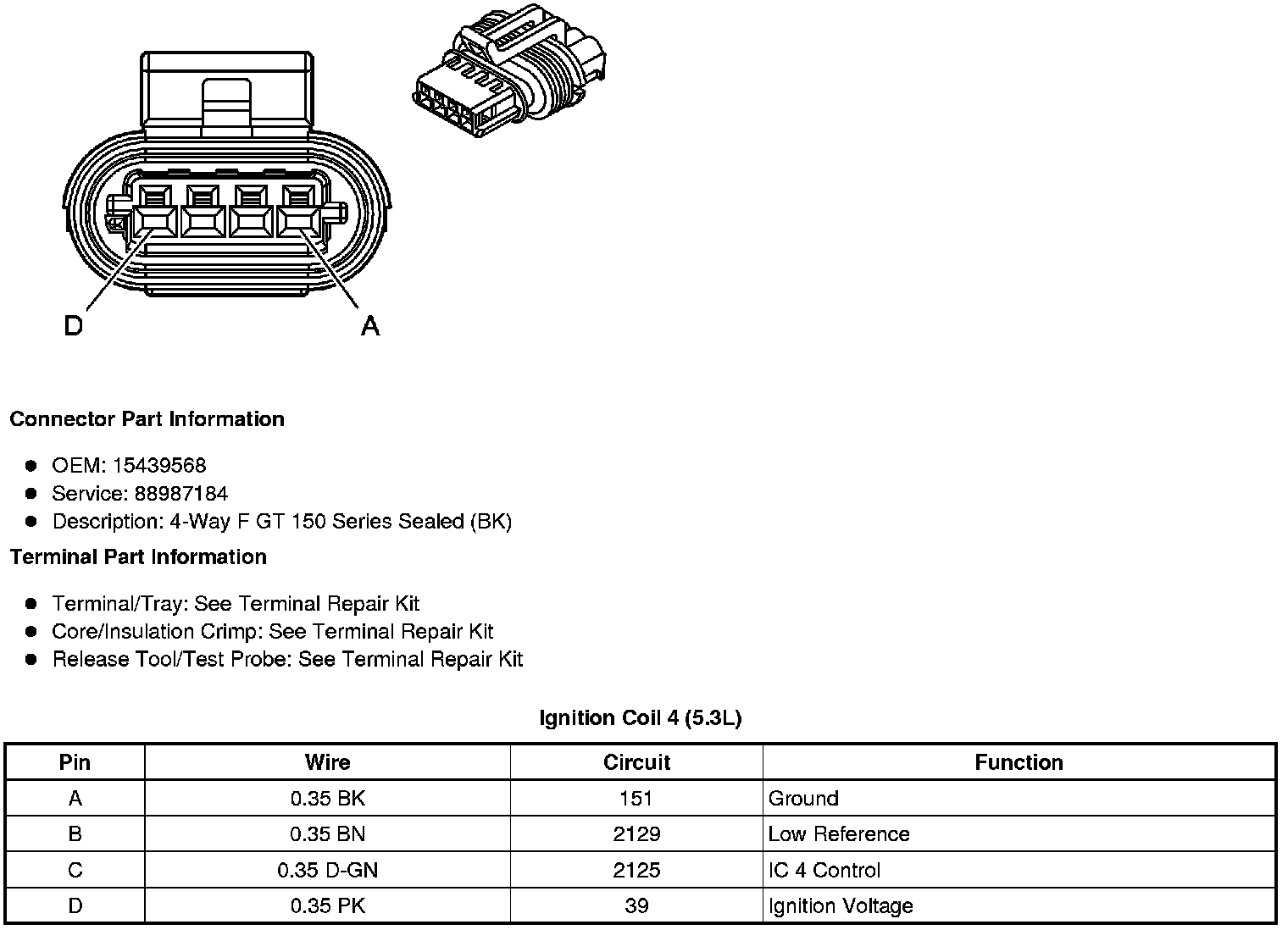

Ignition Coil 4 (5.3L)





Ignition Coil 5 (5.3L)





Ignition Coil 6 (5.3L)





Ignition Coil 7 (5.3L)





Ignition Coil 8 (5.3L)
