Dimmer Switch: Service and Repair




Instrument Panel Lamp Dimmer Switch Replacement

Removal Procedure

1. Remove the left instrument panel (I/P) accessory trim panel. Refer to Instrument Panel Accessory Trim Plate Replacement - Left Side (Instrument Panel Accessory Trim Plate Replacement - Left Side).




2. Disconnect the electrical connector.

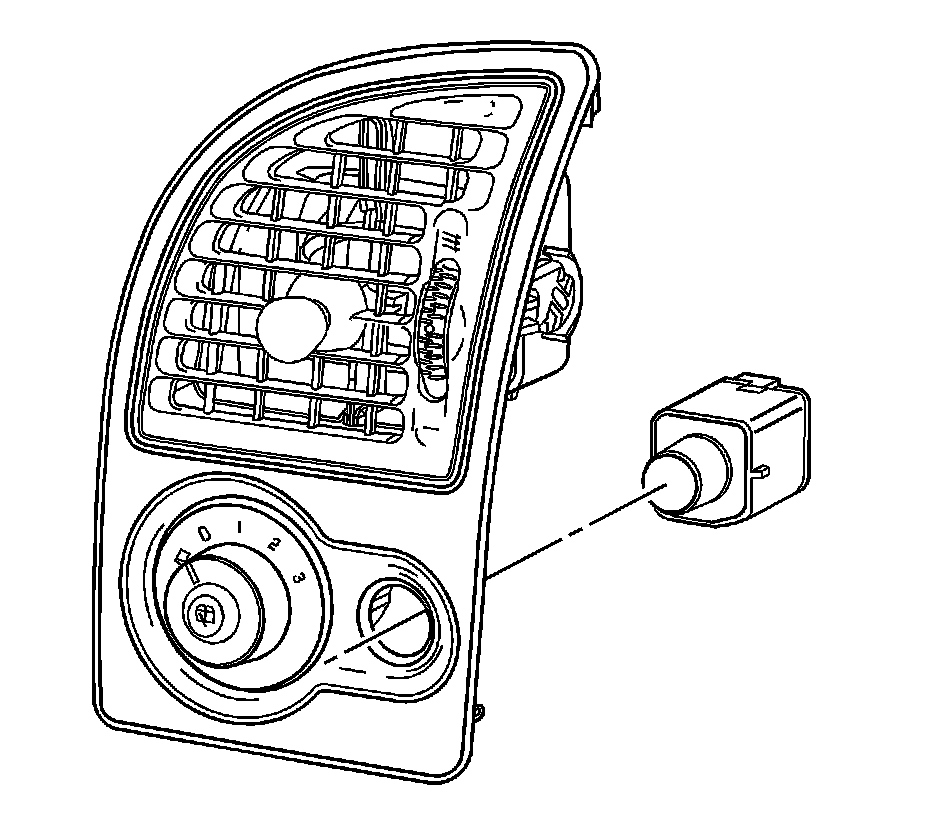

3. Remove the dimmer switch.

Installation Procedure




1. Install the dimmer switch to the accessory trim panel.
2. Connect the electrical connector.
3. Install the left I/P accessory trim panel. Refer to Instrument Panel Accessory Trim Plate Replacement - Left Side (Instrument Panel Accessory Trim Plate Replacement - Left Side).
