Front of Vehicle/Engine Compartment Component Views

Front of Vehicle/Engine Compartment Component Views

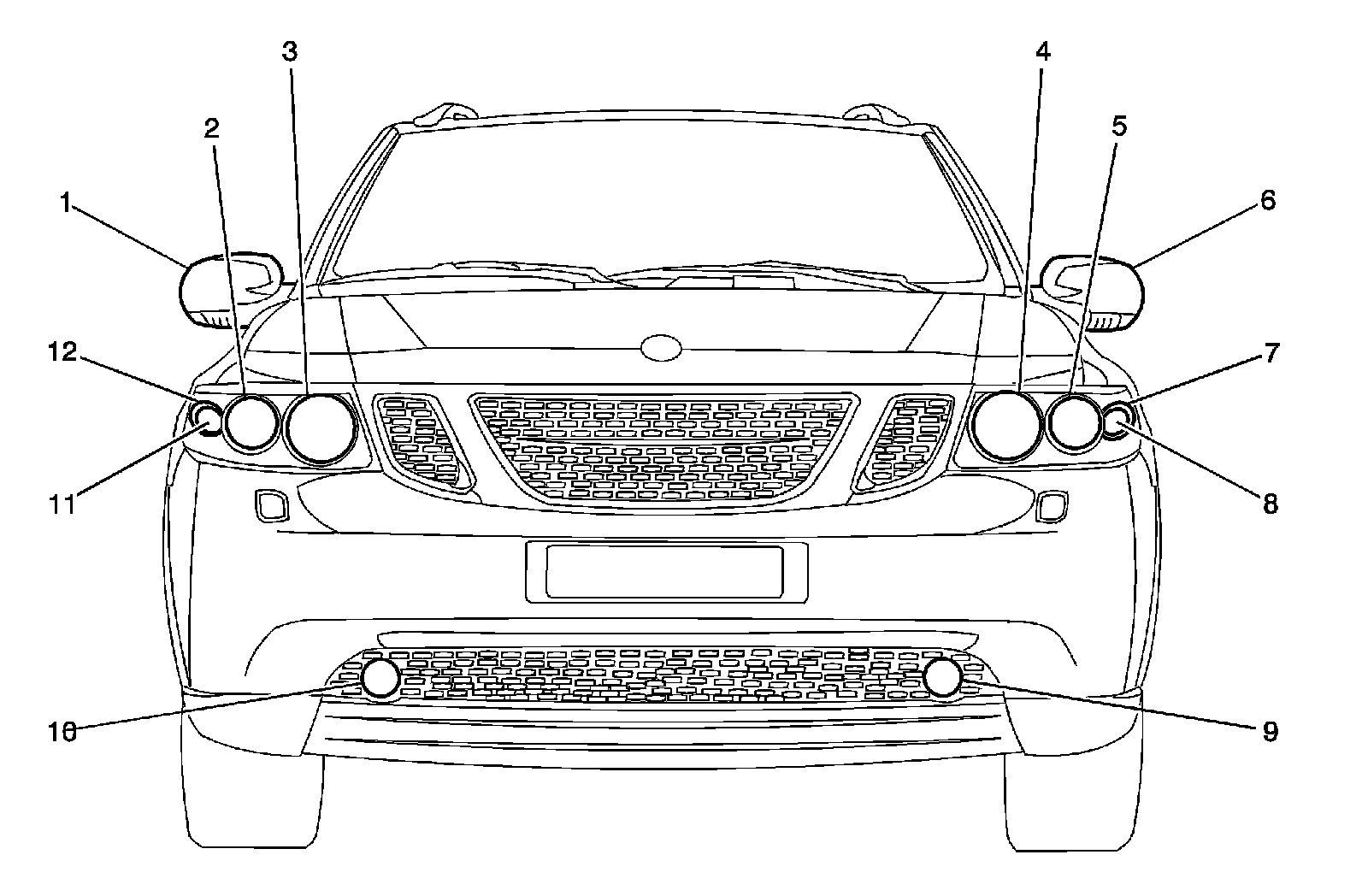

Front of Vehicle




1 - Outside Rearview Mirror - Passenger
2 - Headlamp - Low Beam - Right
3 - Headlamp - High Beam - Right
4 - Headlamp - High Beam - Left
5 - Headlamp - Low Beam - Left
6 - Outside Rearview Mirror - Driver
7 - Marker Lamp - LF
8 - Park/Turn Signal Lamp - LF
9 - Fog Lamp - LF
10 - Fog Lamp - RF
11 - Park/Turn Signal Lamp - RF
12 - Marker Lamp - RF

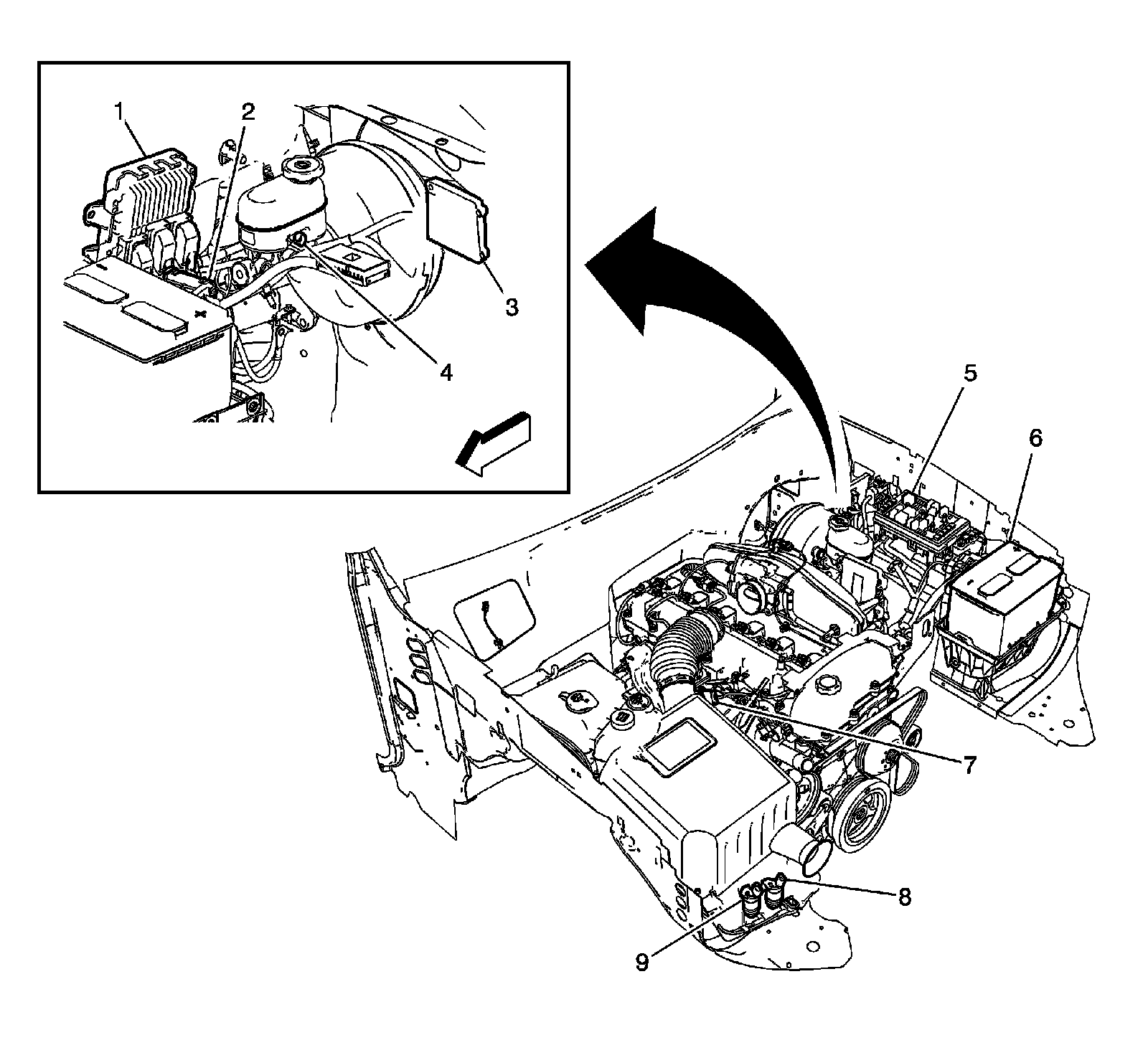

Front Engine Compartment (LL8)




1 - Engine Control Module (ECM)
2 - Regulated Voltage Control Module
3 - Transmission Control Module (TCM)
4 - Brake Fluid Level Switch
5 - Fuse Block - Underhood
6 - Battery
7 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
8 - Windshield Washer Fluid Pump
9 - Rear Window Washer Fluid Pump

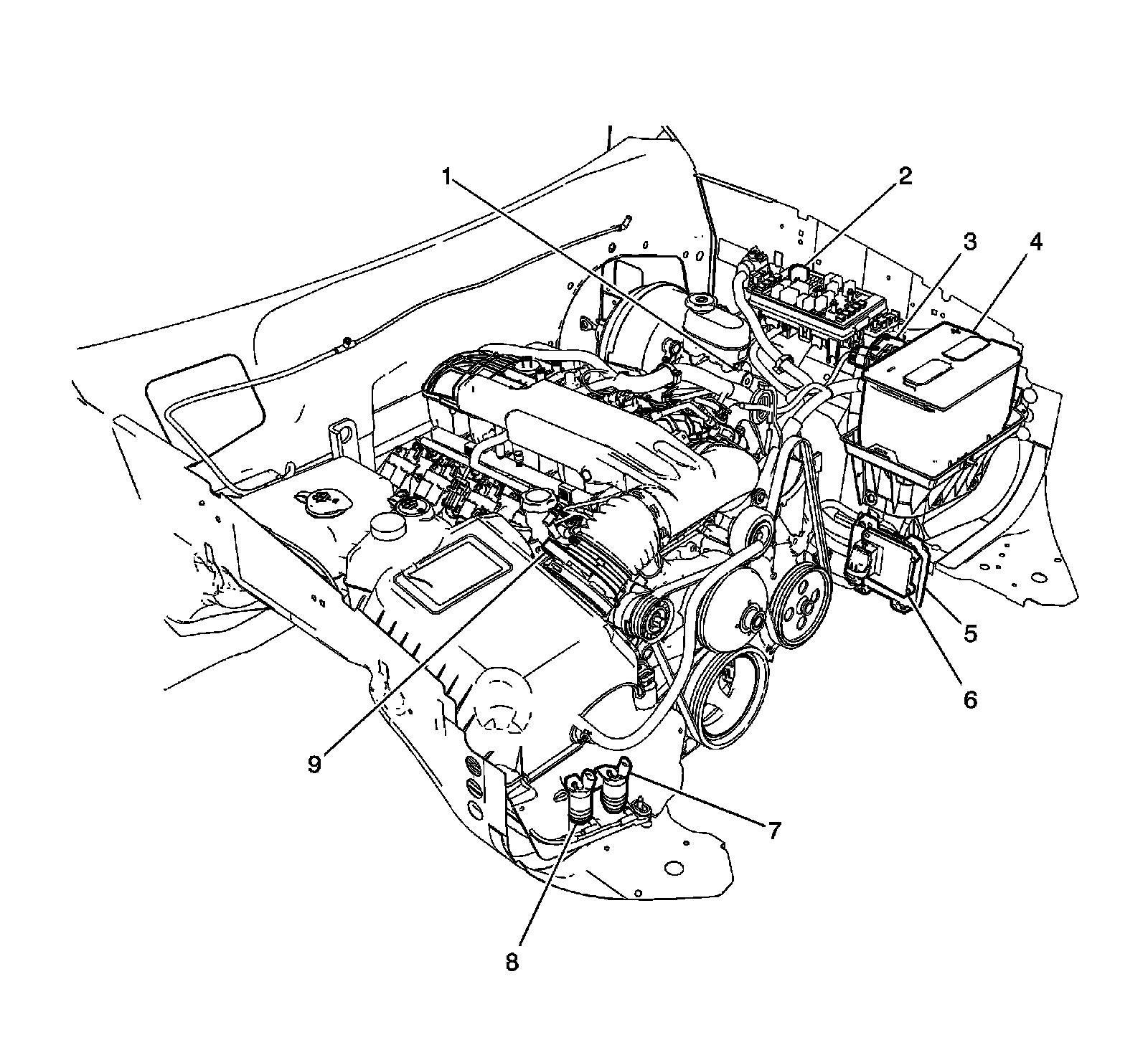

Front Engine Compartment (LL6)




1 - Brake Fluid Level Switch
2 - Fuse Block - Underhood
3 - Regulated Voltage Control Module
4 - Battery
5 - Engine Control Module (ECM)
6 - Transmission Control Module (TCM)
7 - Windshield Washer Fluid Pump
8 - Rear Window Washer Fluid Pump
9 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

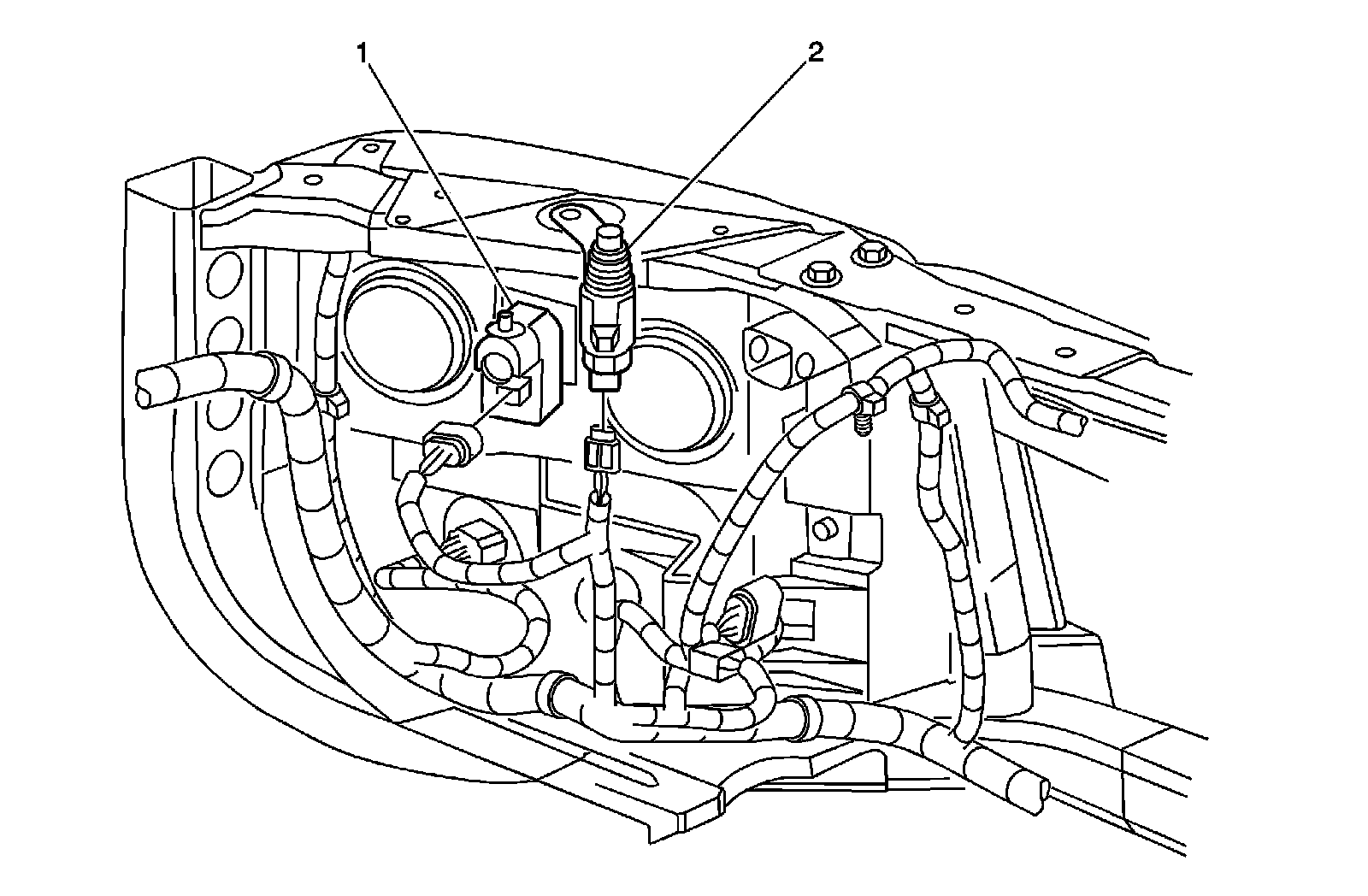

Behind Left Headlamp




1 - Headlamp Leveling Actuator - Left (TR6)
2 - Hood Ajar Switch (UA2)

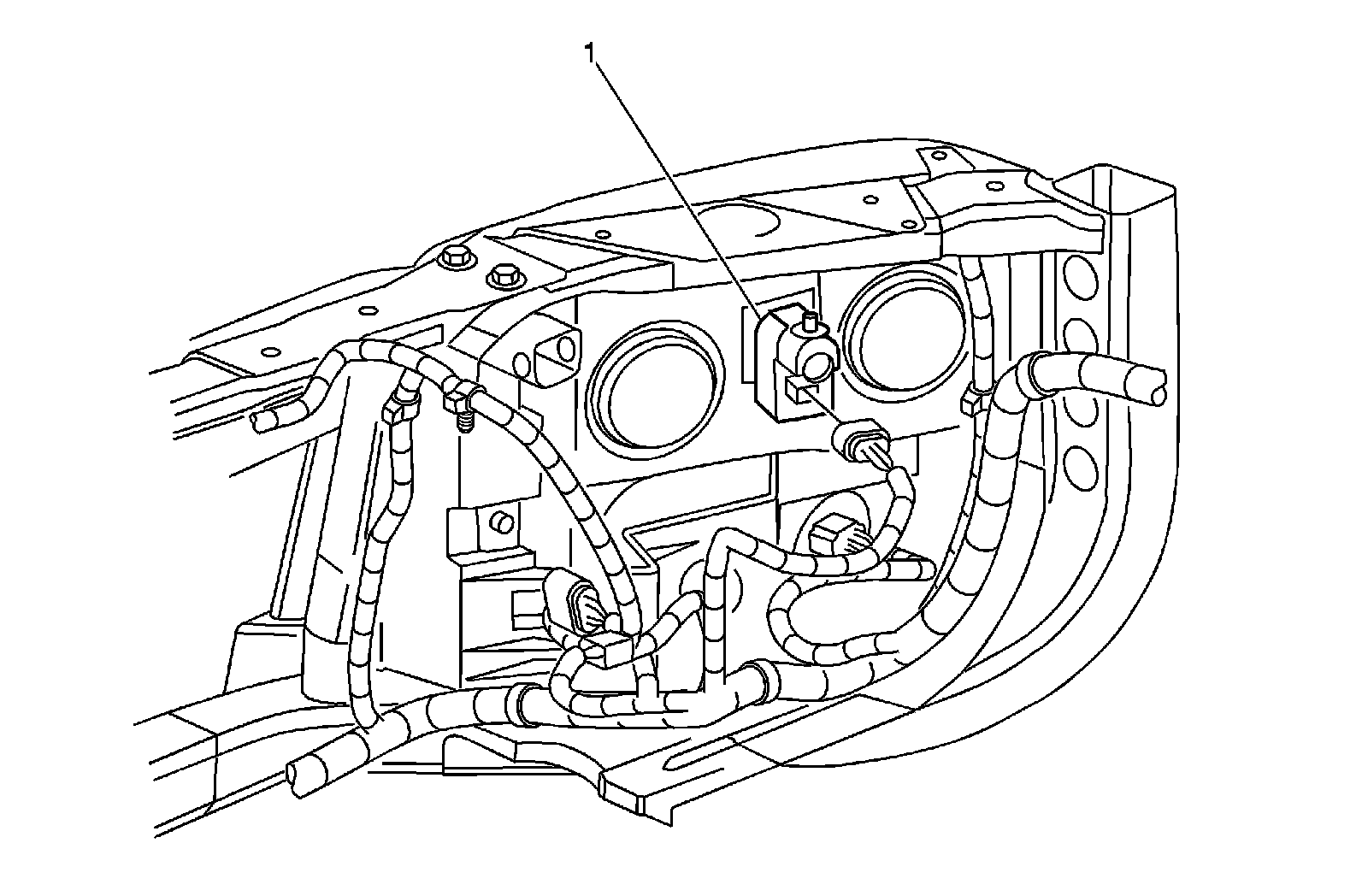

Behind Right Headlamp




1 - Headlamp Leveling Actuator - Right (TR6)

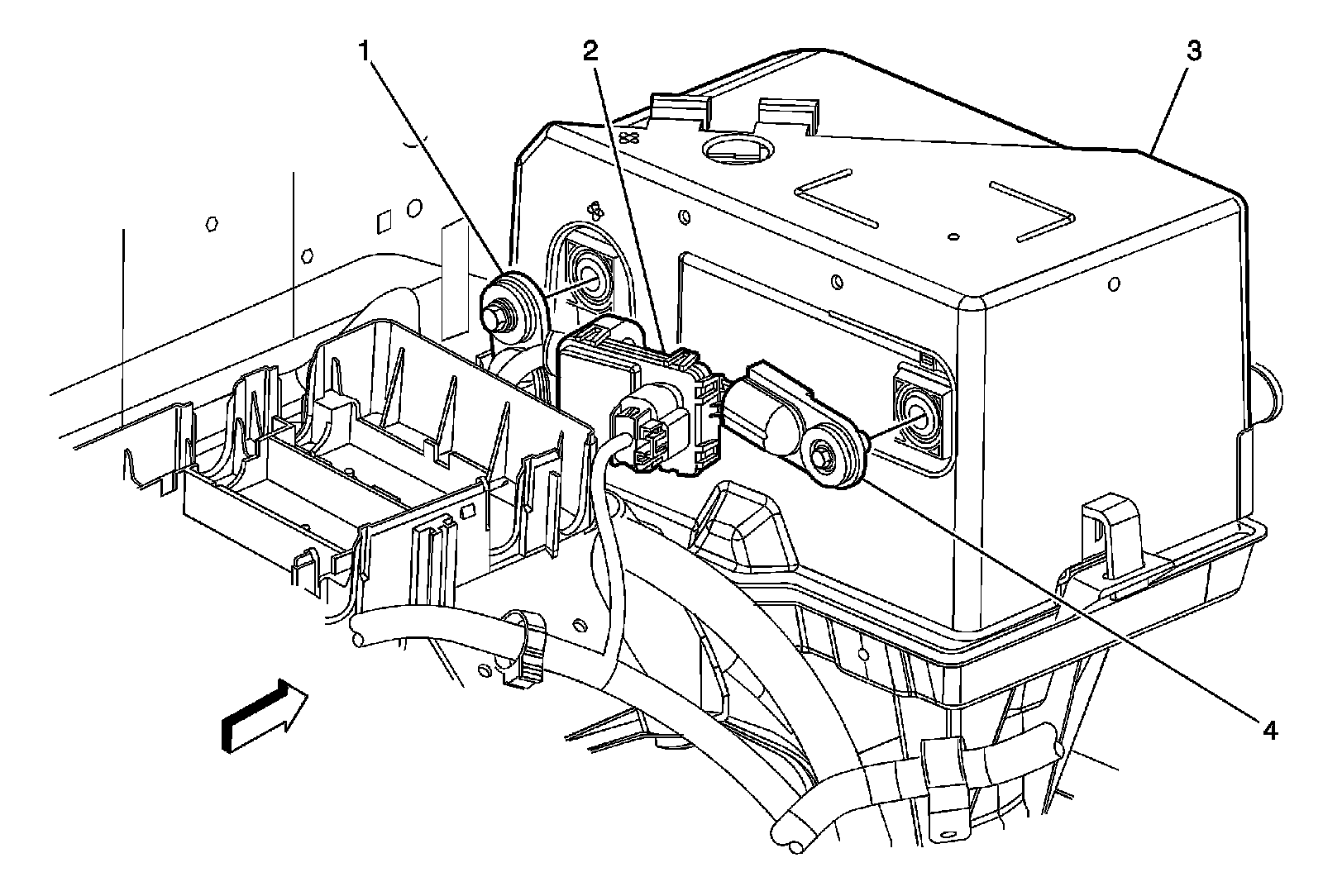

Rear of Battery




1 - Positive Battery Terminal
2 - Battery Current Sensor
3 - Battery
4 - Negative Battery Terminal
