Theft Deterrent Module Replacement




Theft Deterrent Module Replacement

Removal Procedure




1. Remove the console bin. Refer to Front Floor Console Compartment Replacement (Front Floor Console Compartment Replacement).

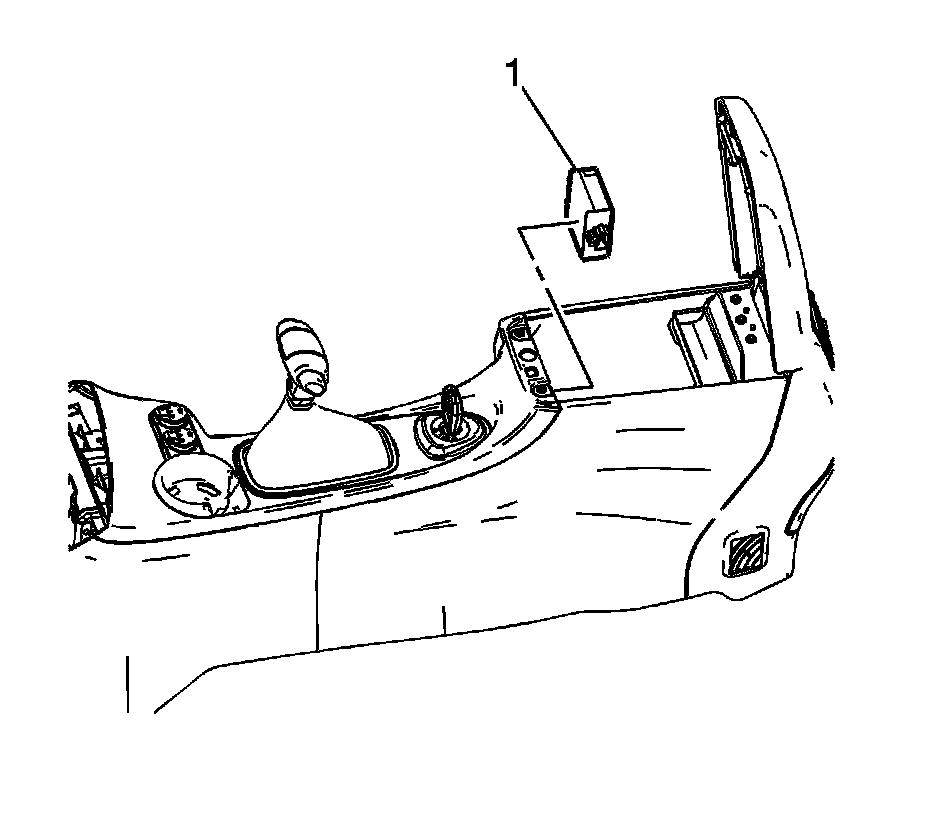

2. Remove the module (1).

Installation Procedure




1. Fasten the module (1) to the console with hook and loop tape.
2. Install the console bin. Refer to Front Floor Console Compartment Replacement (Front Floor Console Compartment Replacement).
3. Refer to Control Module References (Programming and Relearning) for programming and setup information.
