Liftgate Window Weatherstrip Replacement




Liftgate Window Weatherstrip Replacement

Removal Procedure




1. Open the liftgate window.

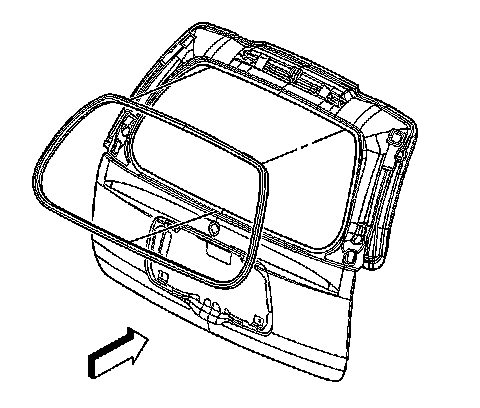

2. Pull the liftgate window weatherstrip from the liftgate window opening pinch-weld flange.

Installation Procedure




1. Install the liftgate window weatherstrip, starting at the top center of the liftgate opening position the liftgate window weatherstrip to the pinch-weld flange. Work down the right and left sides toward the bottom center.
Important: Do not stretch the liftgate window weatherstrip during installation.


2. Install the butt joint seam at the center of the bottom pinch-weld flange.
3. Use a rubber mallet to ensure full engagement of the liftgate window weatherstrip to the pinch-weld flange.
4. Spooning of the liftgate window weatherstrip may be required to complete the installation of the liftgate window weatherstrip.
5. Close the liftgate window.
