Rear Side Door Window Regulator Replacement

Rear Side Door Window Regulator Replacement

Removal Procedure

1. Remove the door trim panel. Refer to Rear Side Door Trim Panel Replacement (Rear Side Door Trim Panel Replacement).
2. Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement (Rear Side Door Water Deflector Replacement).
3. Remove the speaker. Refer to Radio Rear Side Door Speaker Replacement (Radio Rear Side Door Speaker Replacement).

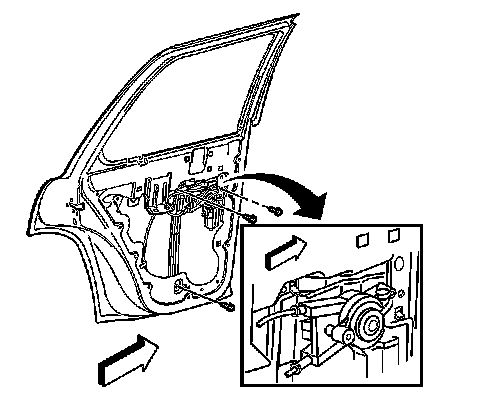

4. Loosen the regulator window carrier bolts.
5. Raise and support the window.




6. Disconnect the electrical connector from the regulator motor.
7. Remove the 3 bolts that retain the window regulator assembly to the door.
8. Remove the window regulator assembly from the door.

Installation Procedure




1. Install the window regulator assembly to the door.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the 3 bolts that retain the window regulator assembly to the door and tighten to10 Nm (88 in. lbs.).
3. Connect the electrical connector to the regulator motor.
4. Remove the window support and lower the window onto the regulator window carrier.
5. Loosely tighten the regulator window carrier bolts.
6. Operate the window upward to the full up position, ensuring the window remains in the run channels. Tighten the regulator window carrier bolts to 10 Nm (88 in. lbs.).
7. Install the speaker. Refer to Radio Rear Side Door Speaker Replacement (Radio Rear Side Door Speaker Replacement).
8. Install the water deflector. Refer to Rear Side Door Water Deflector Replacement (Rear Side Door Water Deflector Replacement).
9. Install the door trim panel. Refer to Rear Side Door Trim Panel Replacement (Rear Side Door Trim Panel Replacement).
