Transfer Case

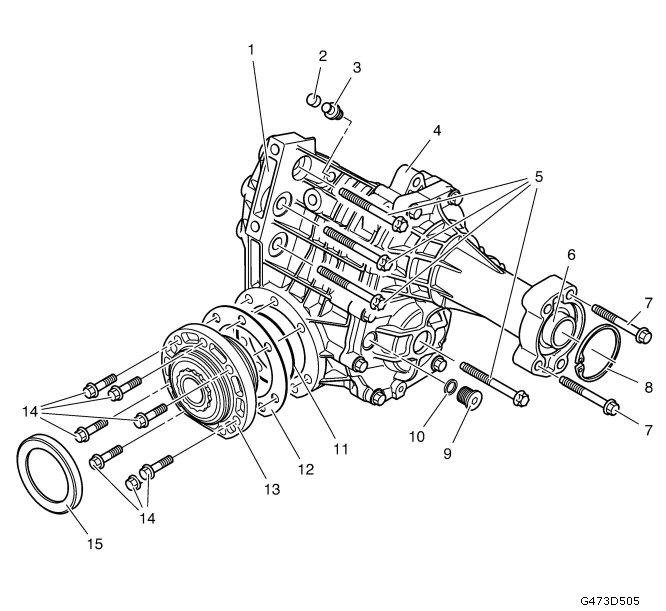

Transfer Case Disassembled View





(1) Transfer Case - Left Side
(2) Cap Vent
(3) Vent
(4) Transfer Case
(5) Transfer Case Bolts
(6) Intermediate Shaft
(7) Transfer Case Rear Bolts
(8) Transfer Case Intermediate Shaft Retaining Ring
(9) Transfer Case Fill Plug
(10) Transfer Case Fill Plug Seal
(11) Transfer Case Rear Output Shaft Flange Seal
(12) Transfer Case Rear Output Shaft Flange Shim
(13) Transfer Case Rear Output Shaft Flange
(14) Transfer Case Rear Output Shaft Flange Bolt
(15) Transfer Case Rear Output Shaft Seal Dirt Deflector
