Primary Timing Chain Guide Replacement - Upper

Primary Timing Chain Guide Replacement - Upper

Removal Procedure

1. Remove the engine front cover.





2. Remove the primary timing chain tensioner.

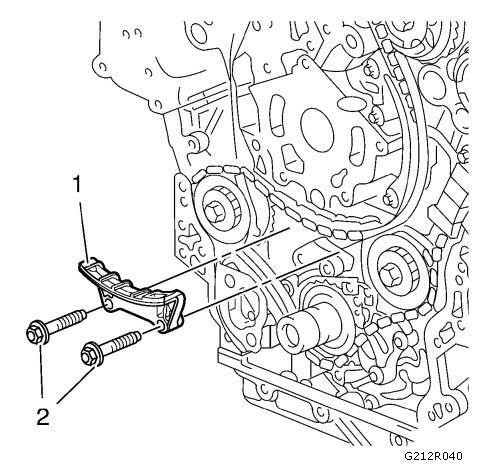

3. Remove the primary upper timing chain guide (1).

Installation Procedure

1. Install the primary upper timing chain guide (1).





2. Install the primary timing chain tensioner.
3. Install the engine front cover.
