Secondary Pivot Arm Timing Chain Guide Installation - Side
Secondary Pivot Arm Timing Chain Guide Installation - Left Side 1.

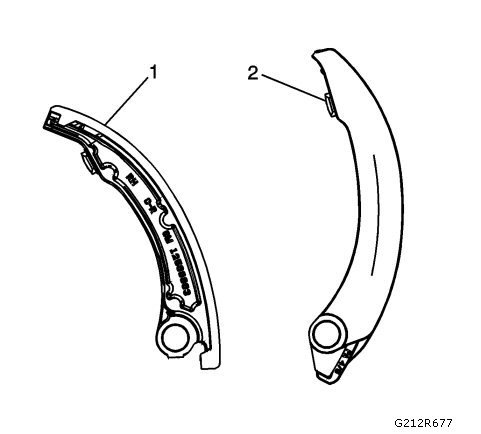

Ensure that the secondary pivot arm
timing chain guide bank 2 (2) is being installed.
2.

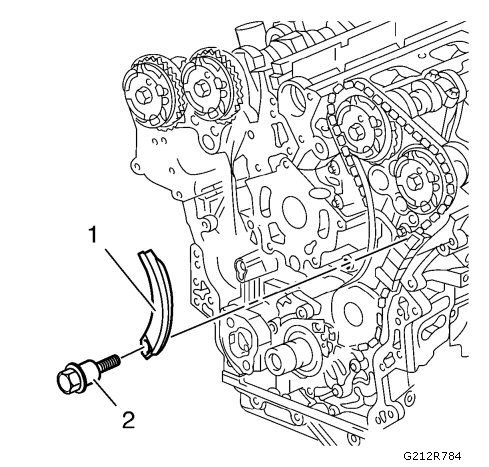

Install the secondary pivot arm
timing chain guide (1).
3.
Refer to Fastener Caution.
Install the secondary pivot arm
timing chain guide bolt (2) and tighten to 23 Nm (17 lb ft).
