Secondary Timing Chain Guide Installation - Left Side
Secondary Timing Chain Guide Installation - Left Side 1.

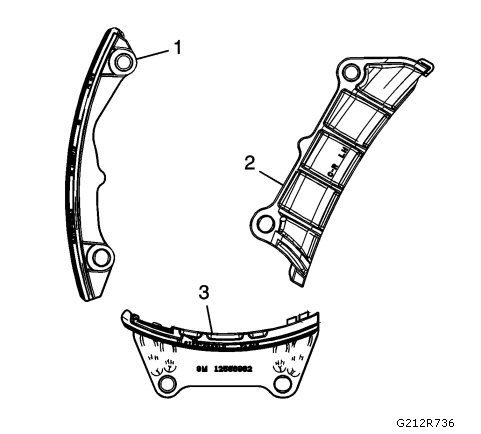

Ensure that the secondary
timing chain guide bank 2 (2) is being installed.
2.

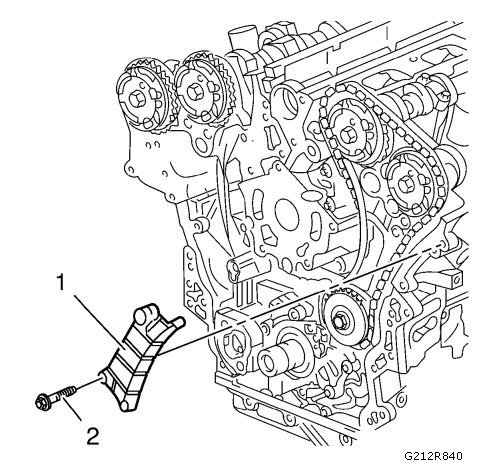

Install the secondary
timing chain guide 2 (1).
3.
Refer to Fastener Caution.
Install the 2 secondary
timing chain guide bolts (2) and tighten to 23 Nm (17 lb ft).
