Fuse: Locations
X50A Fuse Block

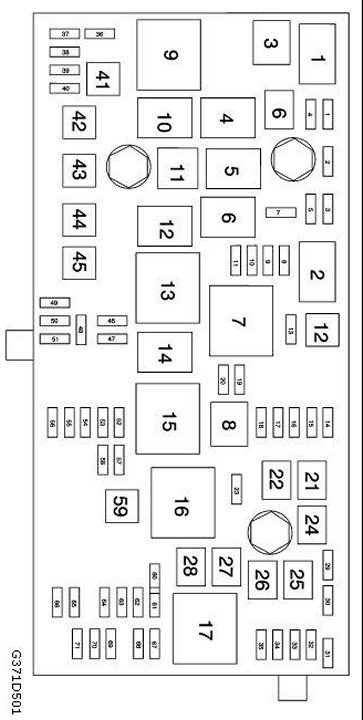

X50A Cover Layout:

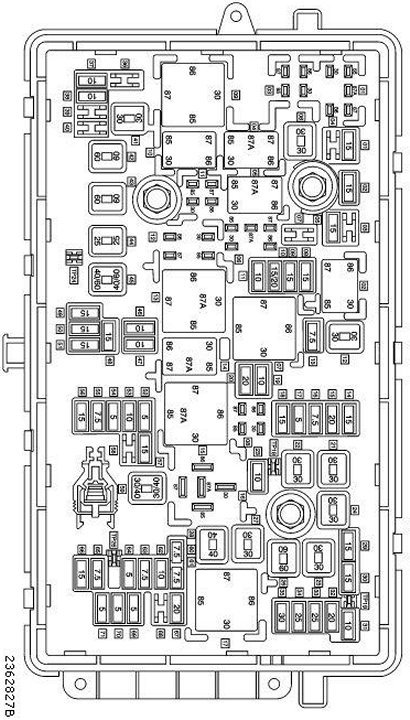

X50A Overhead Details:
Layouts
Fuses

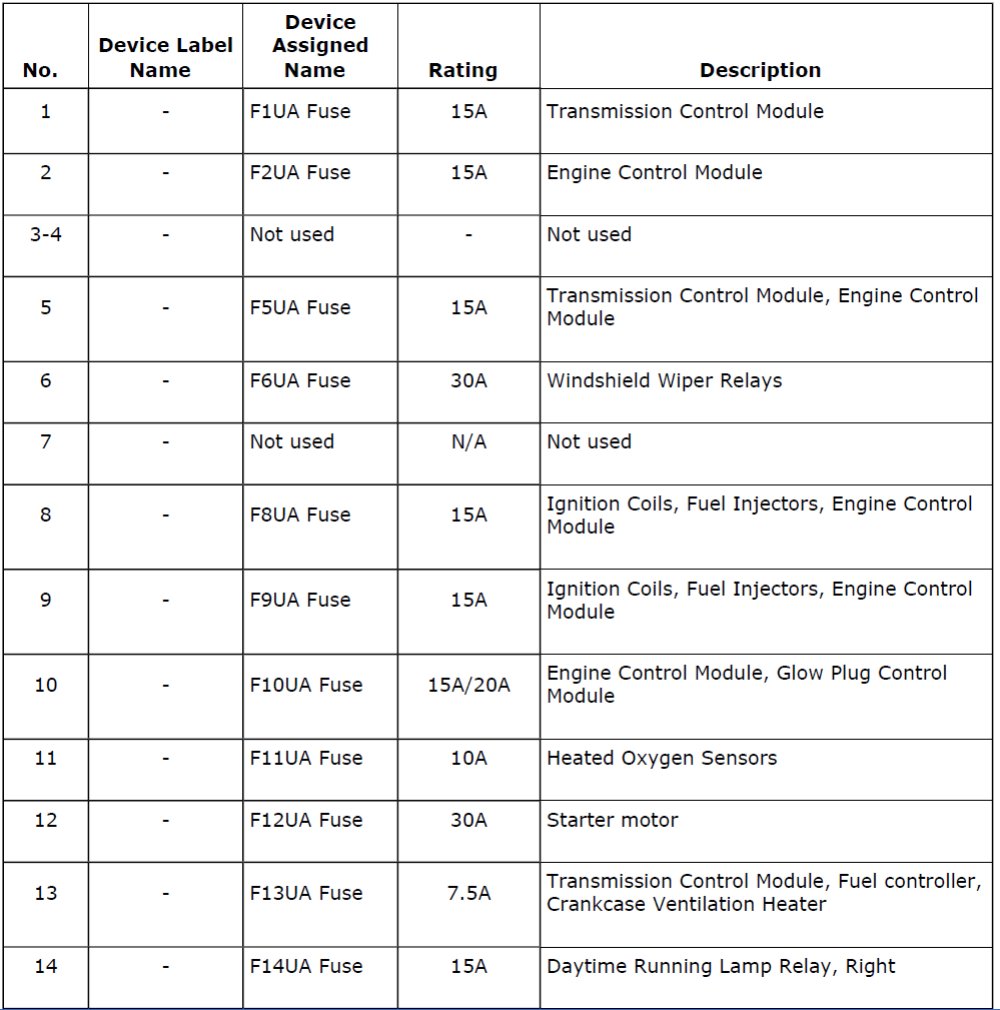

Fuses 1 - 14

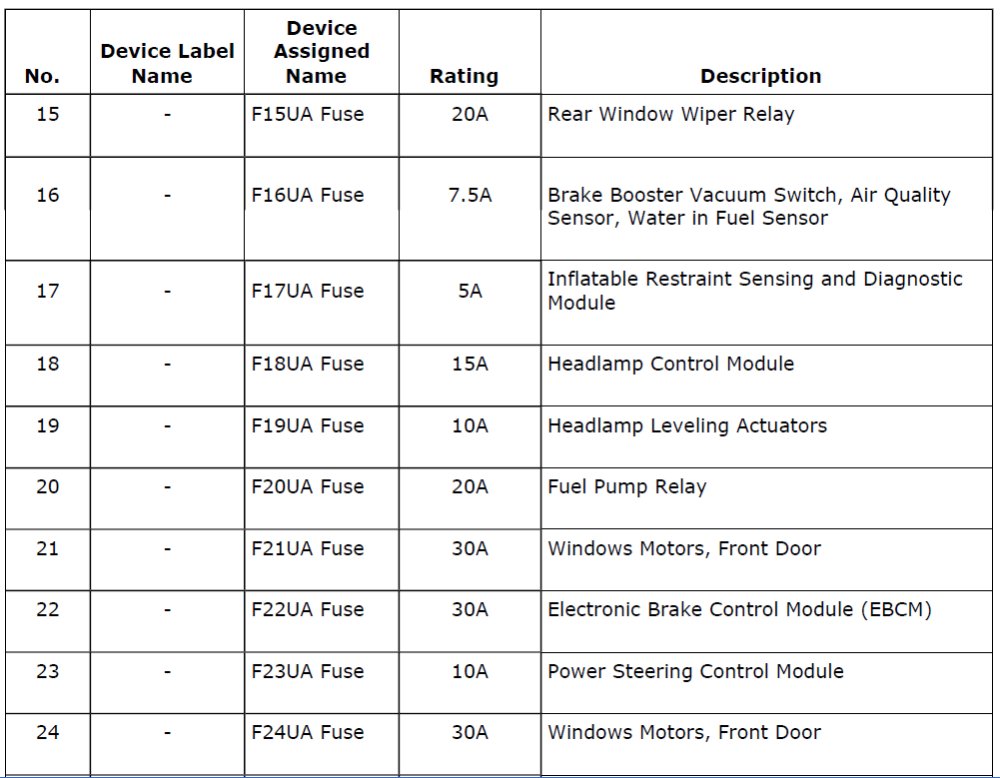

Fuses 15 - 24

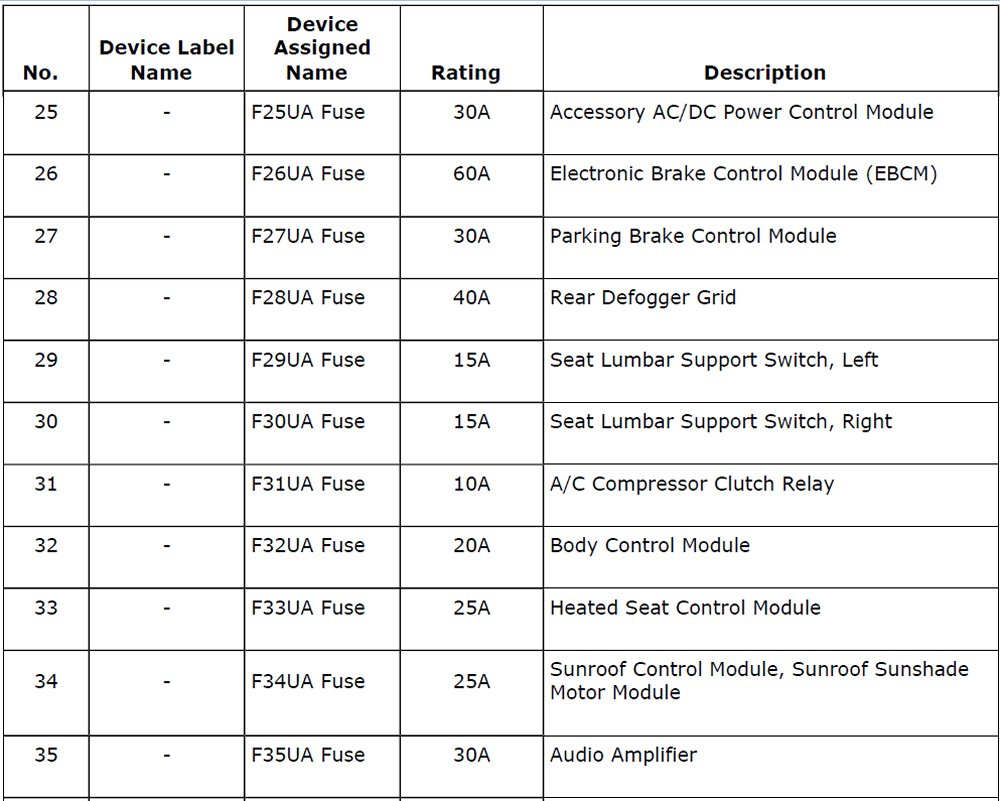

Fuses 25 - 35
Fuses 36 - 50

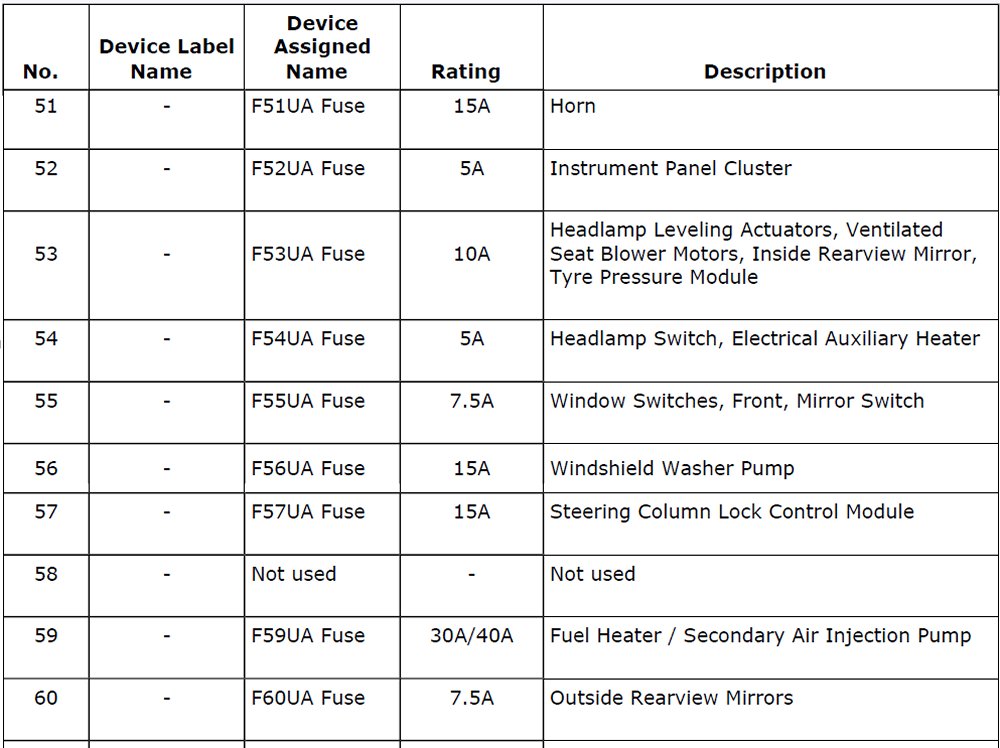

Fuses 51 - 60

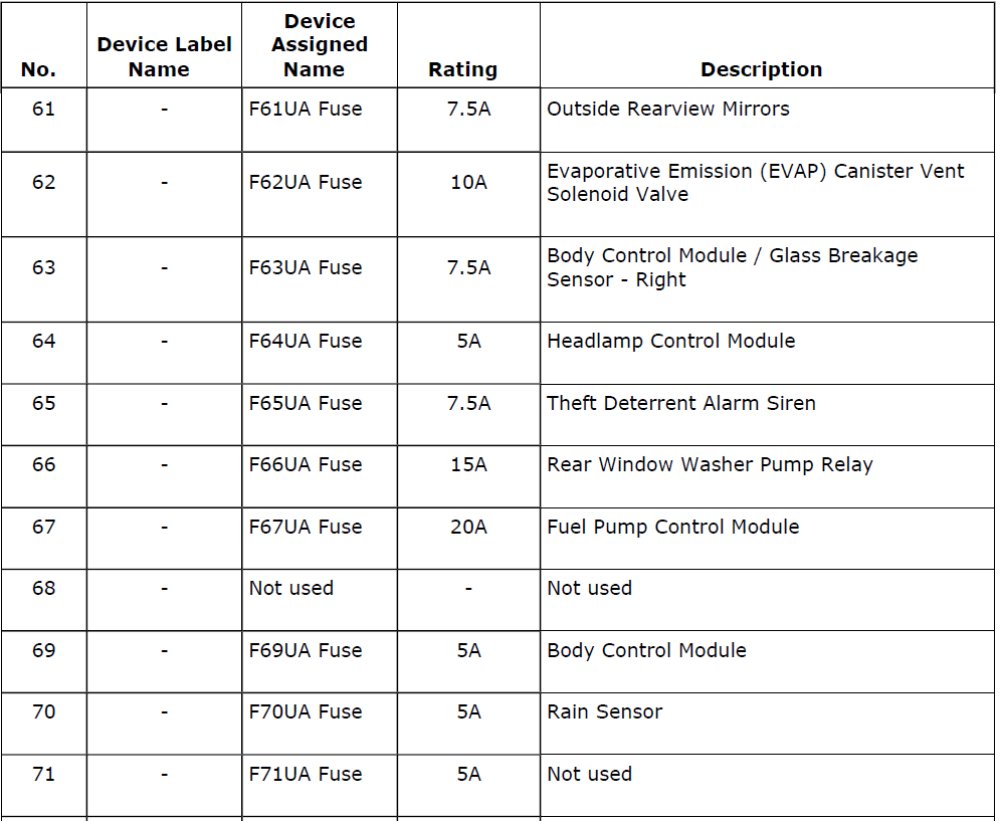

Fuses 61 - 71
Relays

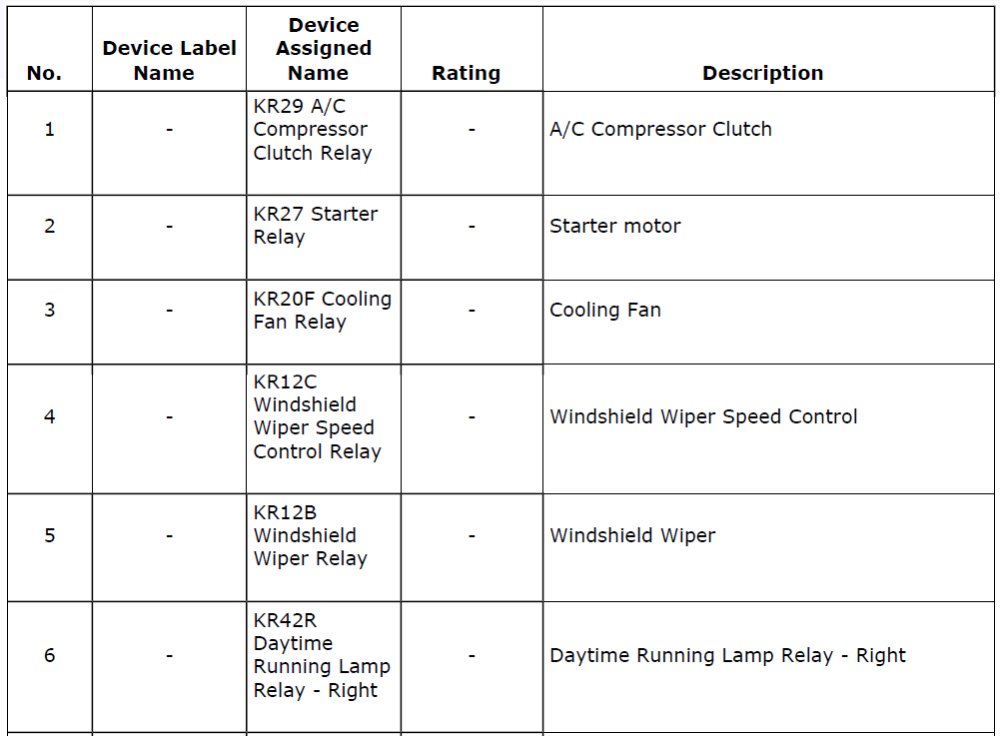

Relay 1 - 6

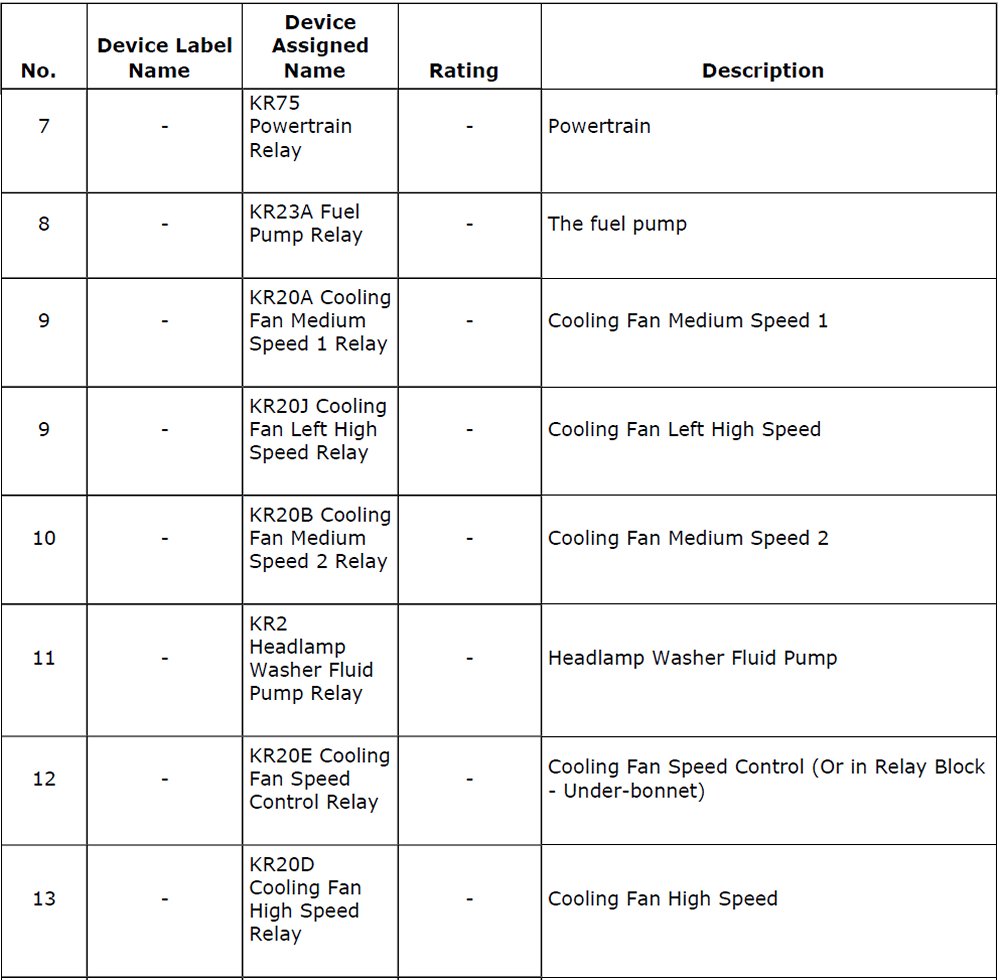

Relay 7 - 13/(KR20D)
Relay 13/(KR20K) - 17
