Cylinder Head Assembly
Cylinder headUse NEW cylinder head bolts

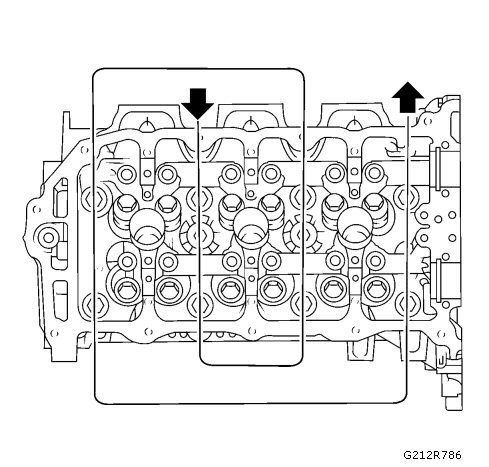

Right side

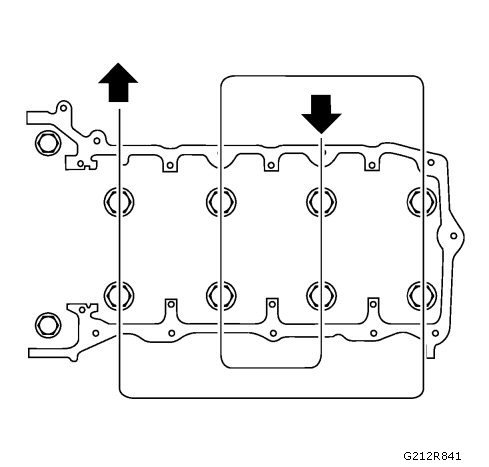

Left side
First pass
30 Nm (22 lb ft)
Second pass
additional 150 degrees
Maximum resurfacing
0.25 mm (0.010 in)

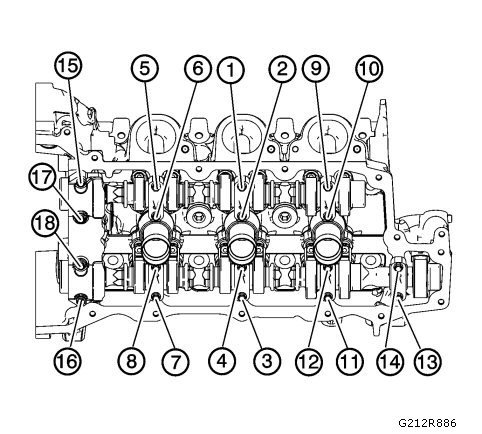

Camshaft capsRight Side

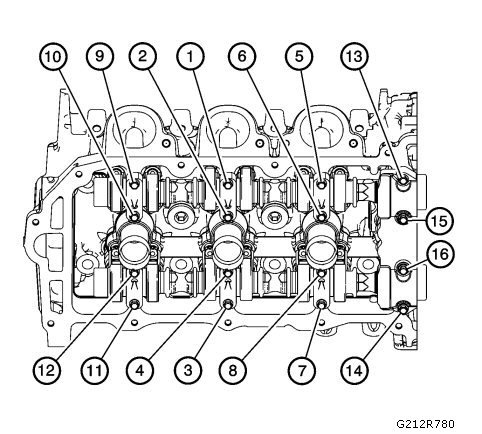

Left Side
Tighten
10 Nm (89 lb in)
Loosen (1, 2, 3, 4)
Retighten (1, 2, 3, 4)
10 Nm (89 lb in)
Intake manifold SpecificationsExhaust manifold SpecificationsCamshaft gear/sprocket Specifications
