Pedestrian Protection
Pedestrian ProtectionTo remove 1.
Remove the front
bumper shell.
Remove
Bumper shell, front, 9-3X.
2.

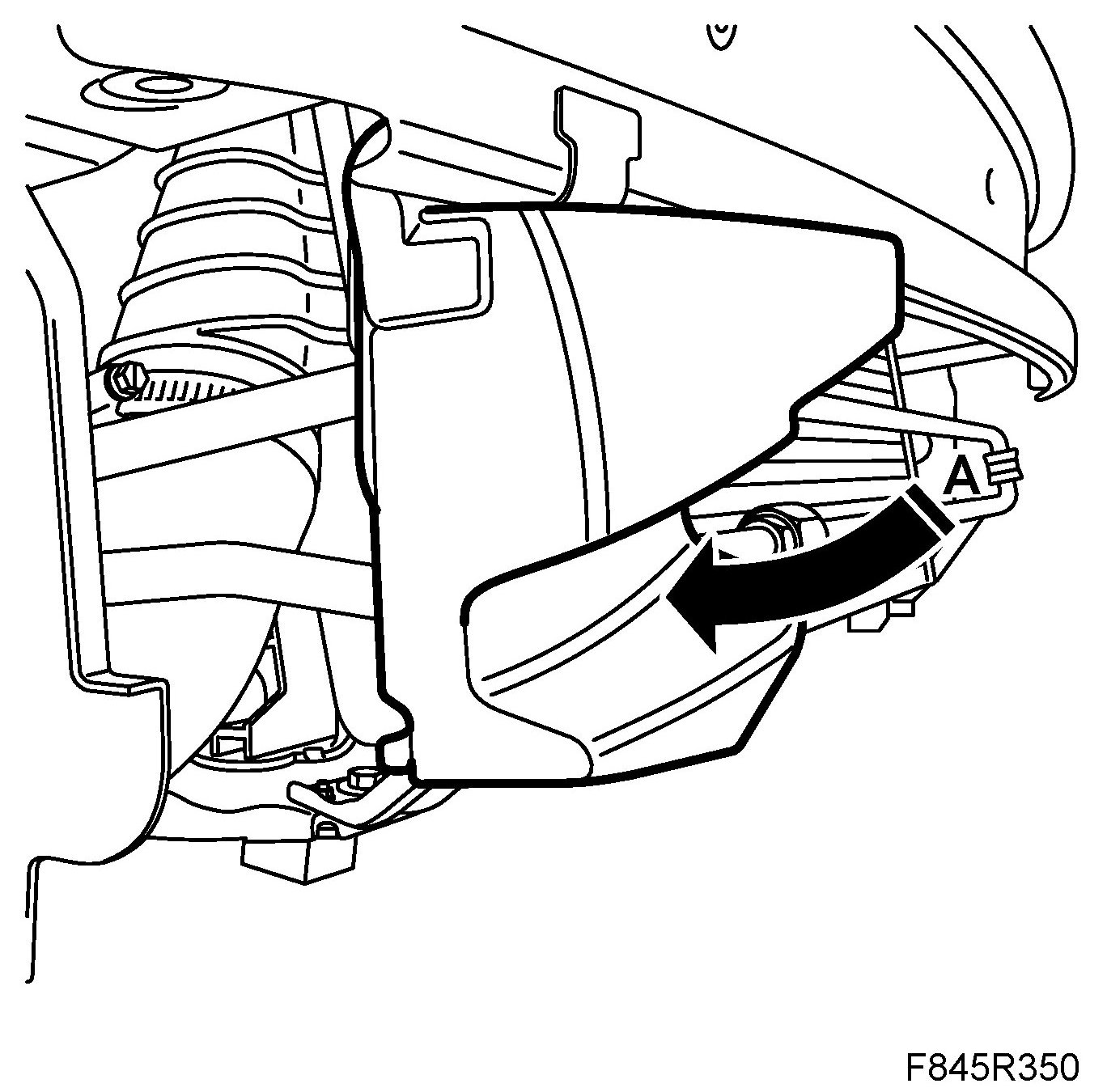

Unhook the cell block (A), right and left-hand sides.
To fit 1.

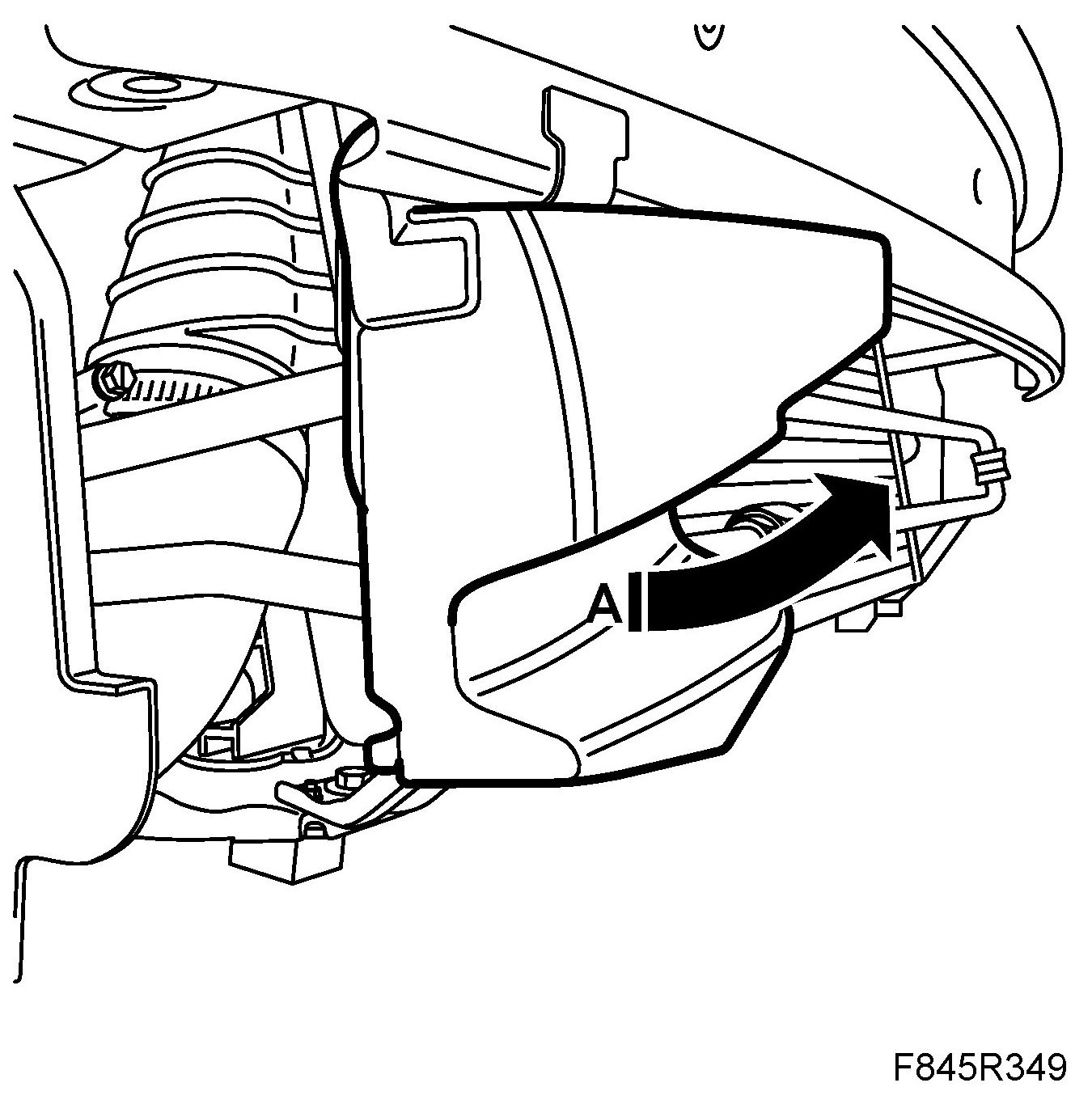

Hook on the cell block (A), right and left-hand sides.
2.
Fit the front
bumper shell.
Fit
Bumper shell, front, 9-3X.
