Alignment

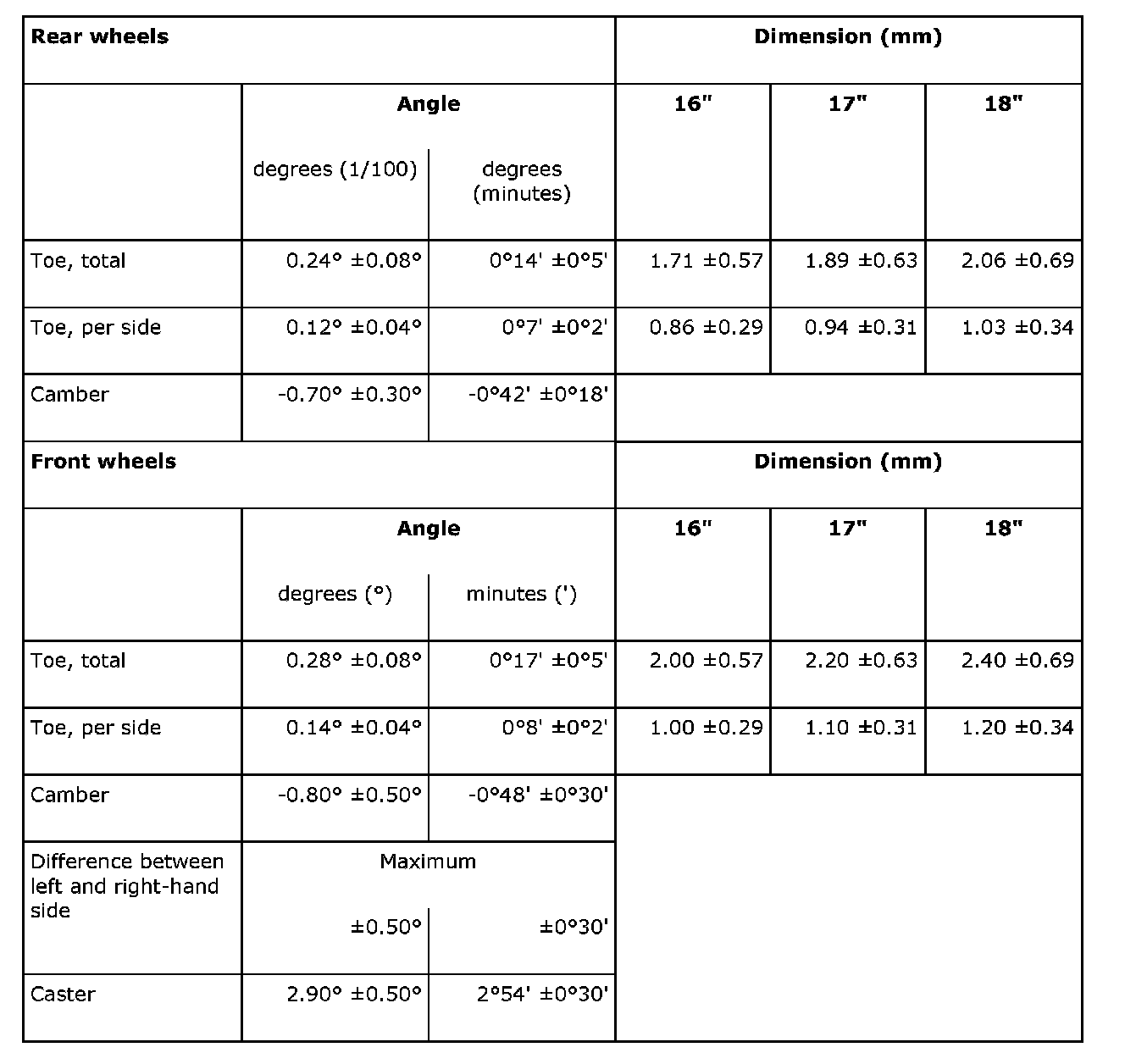

Wheel geometryStandard chassis Note After wheel geometry adjustment, complete Steering Angle Sensor calibration.
Alignment, see Four-wheel alignment.

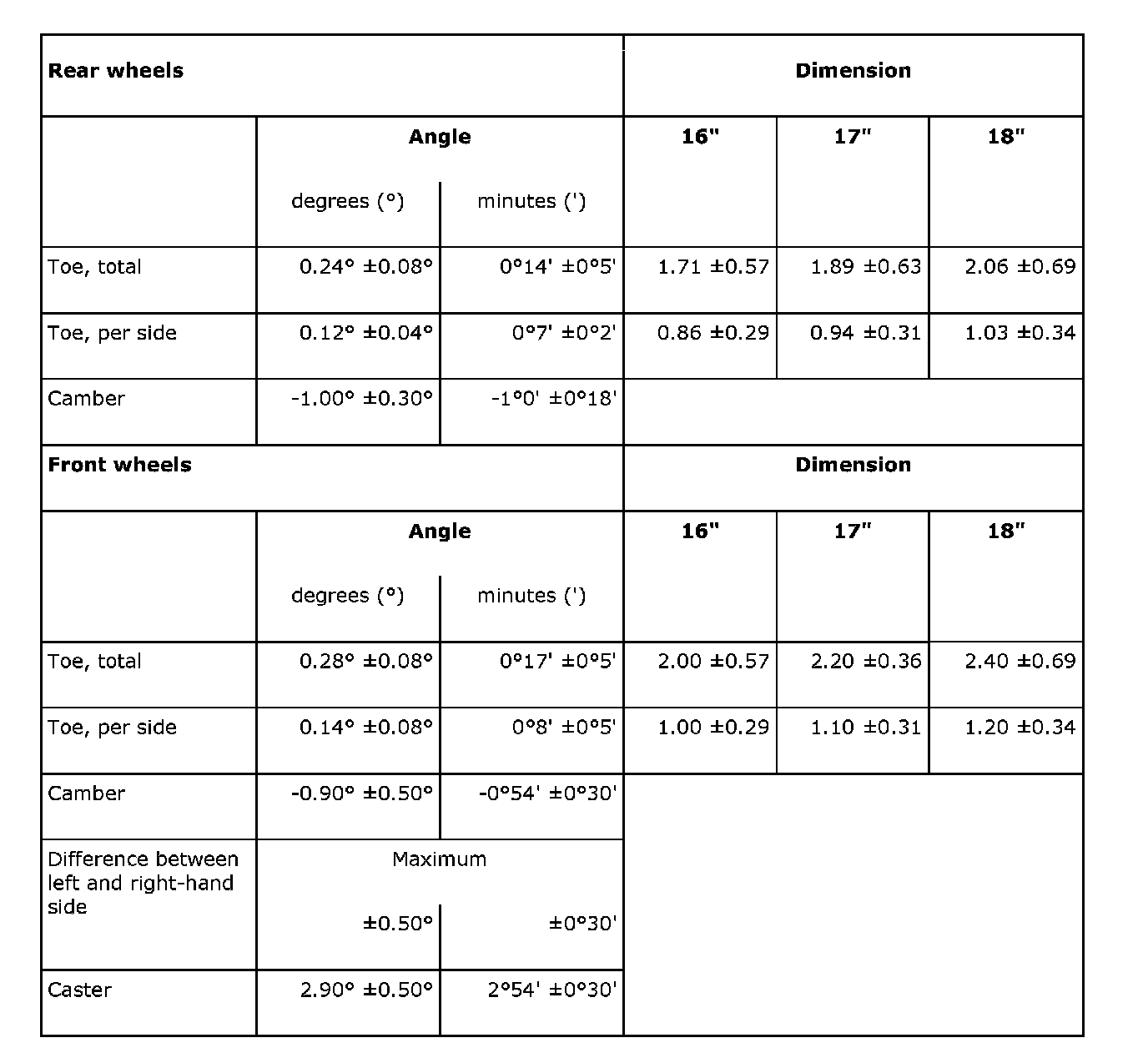

Sport chassis Note After wheel geometry adjustment, complete Steering Angle Sensor calibration.
Alignment, see Four-wheel alignment.
4WD Note After wheel geometry adjustment, complete Steering Angle Sensor calibration.
Alignment, see Four-wheel alignment.
