Rear Toe Adjustment

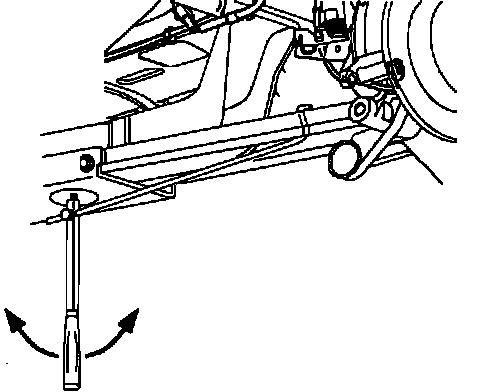

Fig. 2 Refer Toe Adjustment:
1.
Loosen rearmost lateral link to crossmember attaching bolts.
2.
Using tool No. SA9158C or equivalent, move lateral link to adjust,
Fig. 2. 3.
Torque lateral link to
120 Nm (89 ft lbs).
4.
Recheck toe, then repeat for other wheel.
