Drive Belt: Service and Repair

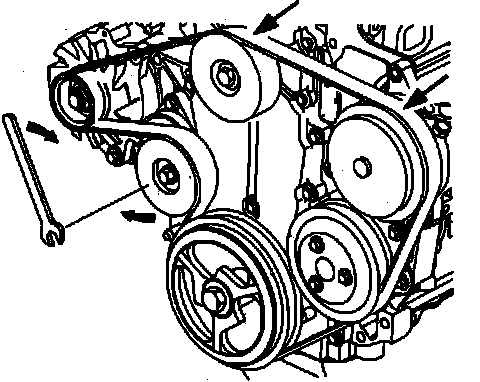

Fig. 36 Belt Tensioner Arm:

Removal
1. Disconnect battery ground cable.
2. Using 14 mm or 9/16 inch wrench, depress tensioner arm, Fig. 36.
3. Remove belt from A/C compressor and idler pulley, then remove belt.






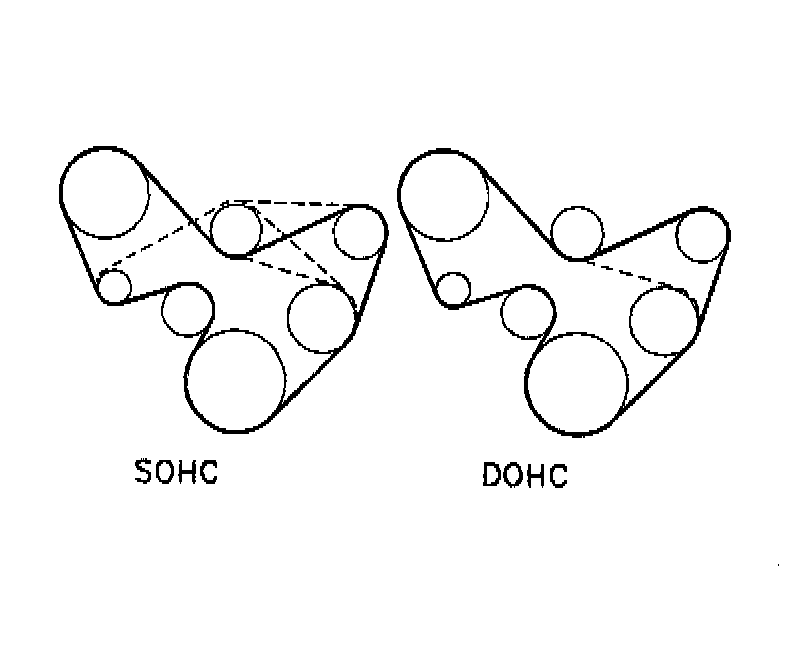

Installation
1. Route belt over all pulleys, except front cover idler or A/C compressor.
2. Using 14 mm or 9/16 inch wrench, depress tensioner arm, Fig. 36.
3. Install belt to idler pulley and A/C compressor.
4. Tighten idler pulley to specifications.
