I/P Fuses

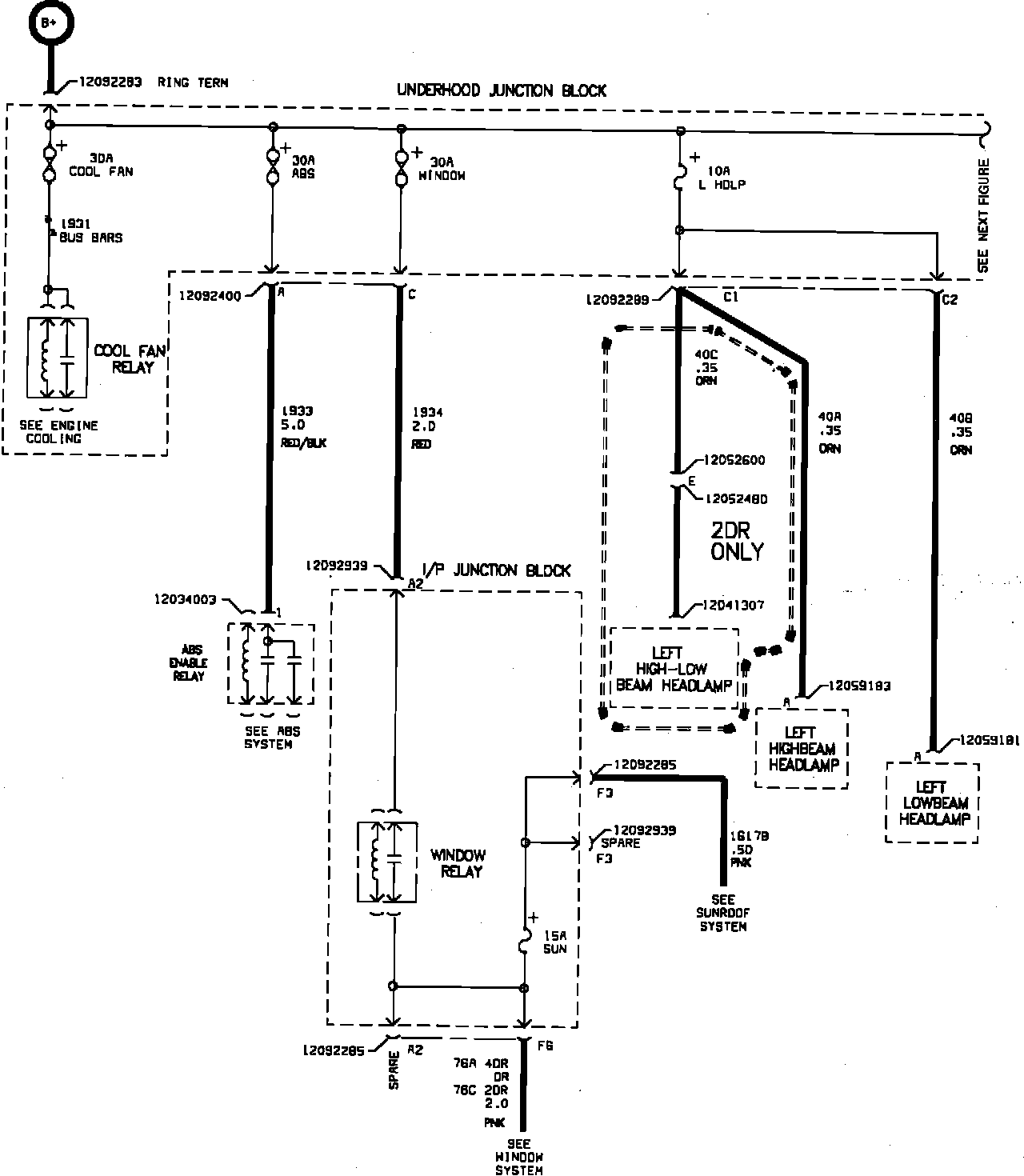

I/P Fuses: L HDLP, SUN:

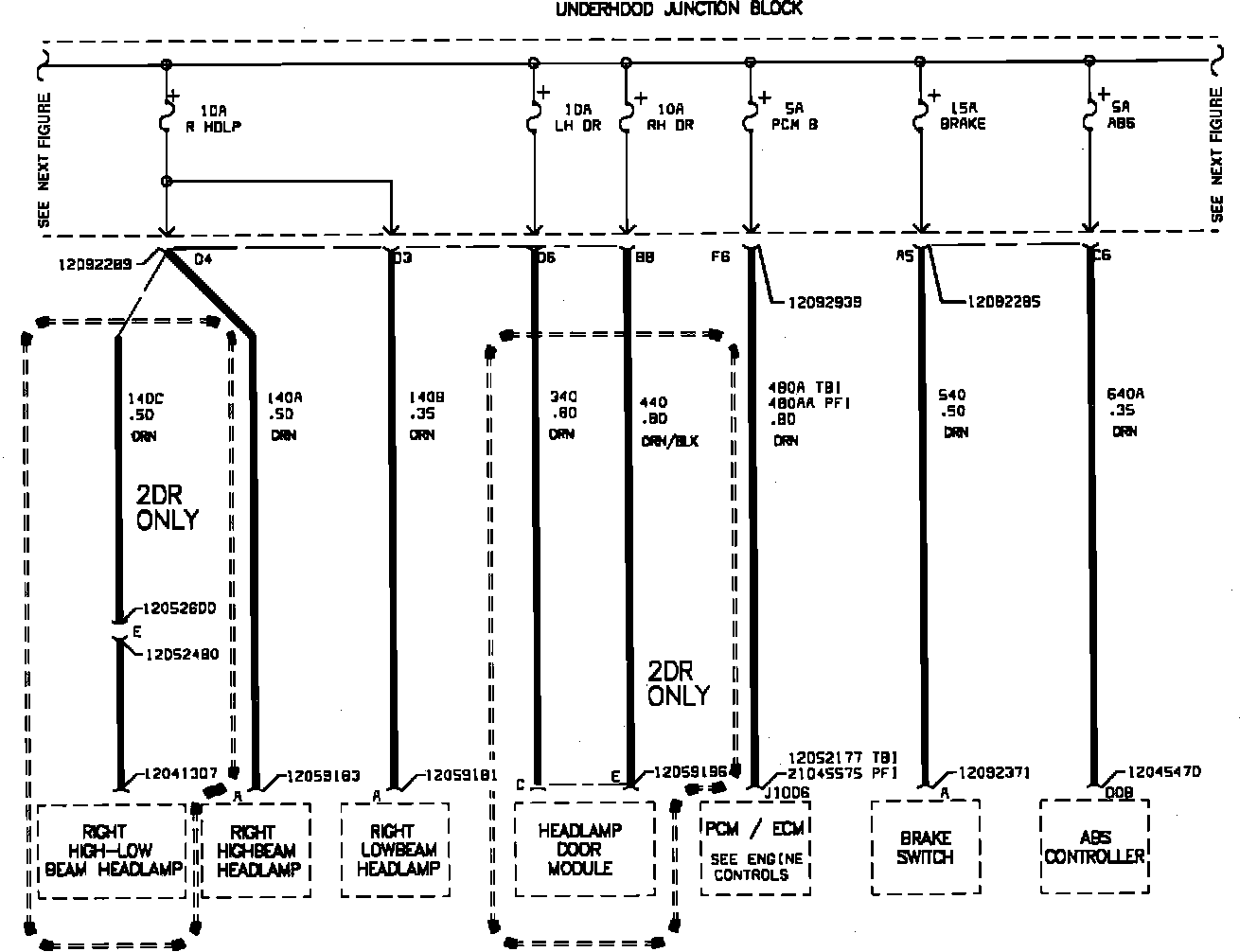

I/P Fuses: R HDLP, LH DR, RH DR, PCM B, Brake, ABS:



I.P Fuses: A/C, Horn, RR DFG:



I/P Fuses: Hazard, TRS HD, TRS LP, TRS 2, TRS 3, TRS 4, TCC:
