How to Disable Trunk Key Release Mechanism





1. Open the trunk lid.

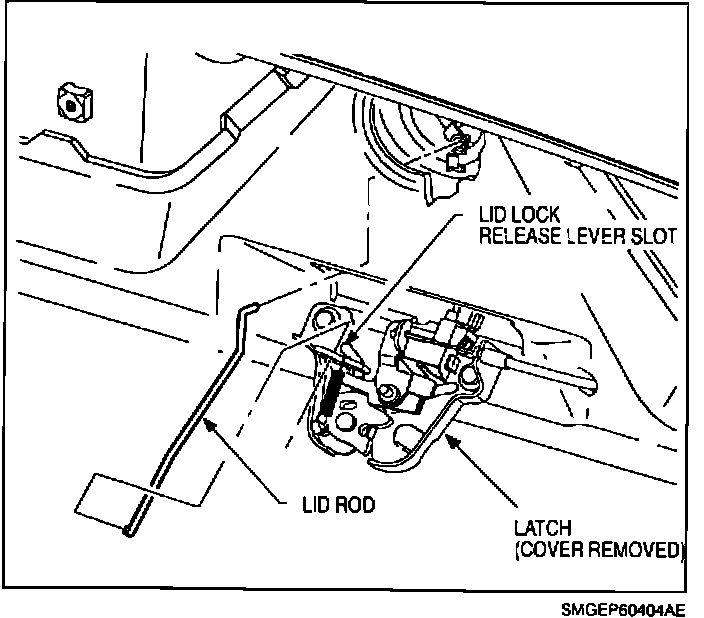

2. Use a screwdriver or your fingers to disengage the yellow clip from the lock rod.

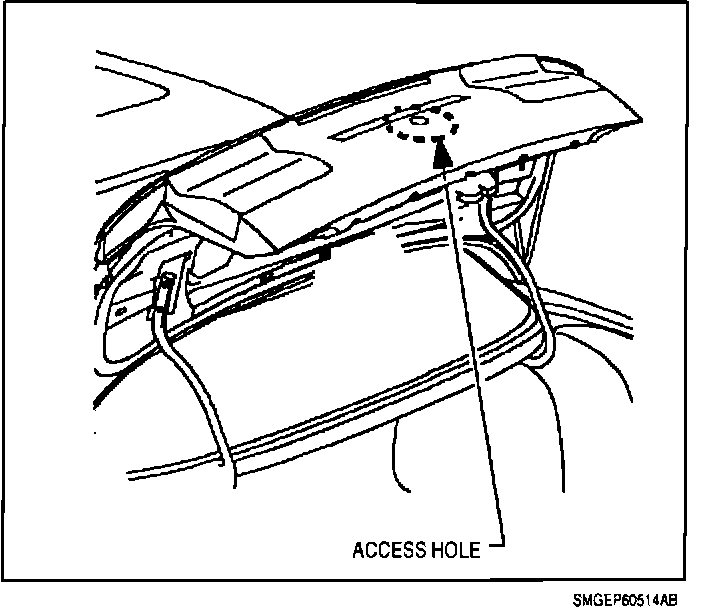

3. Using a screwdriver, pry the latch cover off.






4. Remove the lock rod and dispose of it and push the latch cover back into place.
