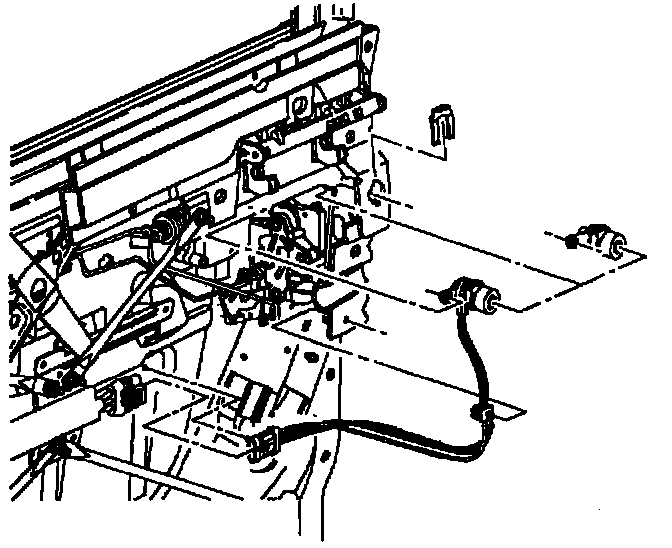

Door Lock Cylinder

REMOVAL

1. Remove outer door panel.
2. Disconnect lock rod from cylinder.
3. Disconnect harness and harness retainer when equipped with power door locks.
4. Remove retainer and remove lock cylinder.

INSTALLATION

1. Install lock cylinder with retainer.
2. Connect harness and harness retainer when equipped with power door locks.
3. Connect lock rod to cylinder.
4. Install outer door panel.
