Sunroof Switch Replacement

SUNROOF SWITCH

REMOVAL

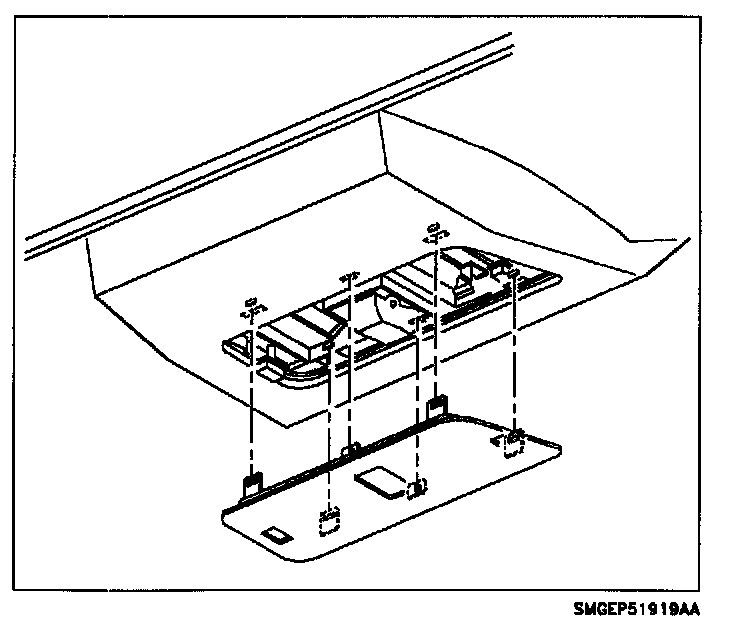

1. Remove map lamp lens and bezel assembly from roof console assembly.

2. Disengage sunroof opening windlace at switch area.

3. Remove sun visor inboard anchor clips.

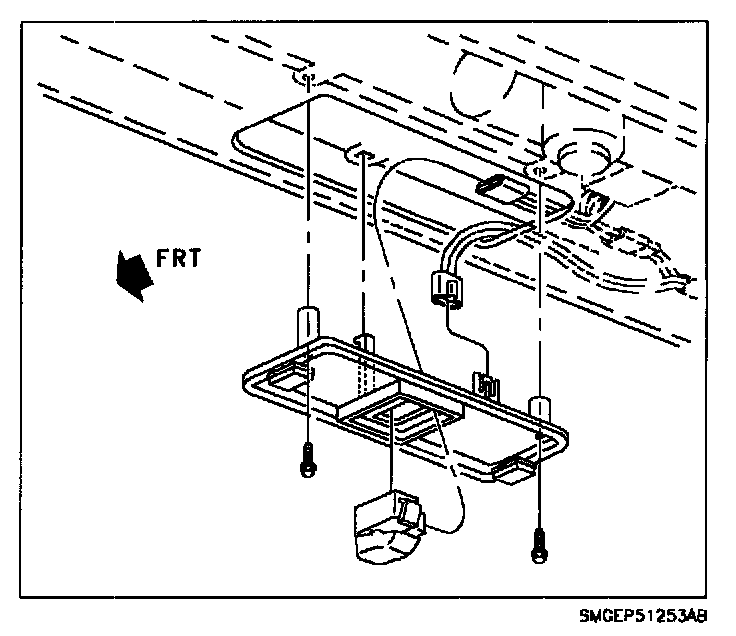

4. Remove two screws and lower sunroof switch and roof console assembly.

5. Disconnect wire connector from switch and depress tabs on switch at console to remove switch.

INSTALLATION

1. Push switch into roof console until switch tabs engage and connect sunroof wire connector to switch.

2. Install switch and roof console.

3. Install sunroof opening windlace.

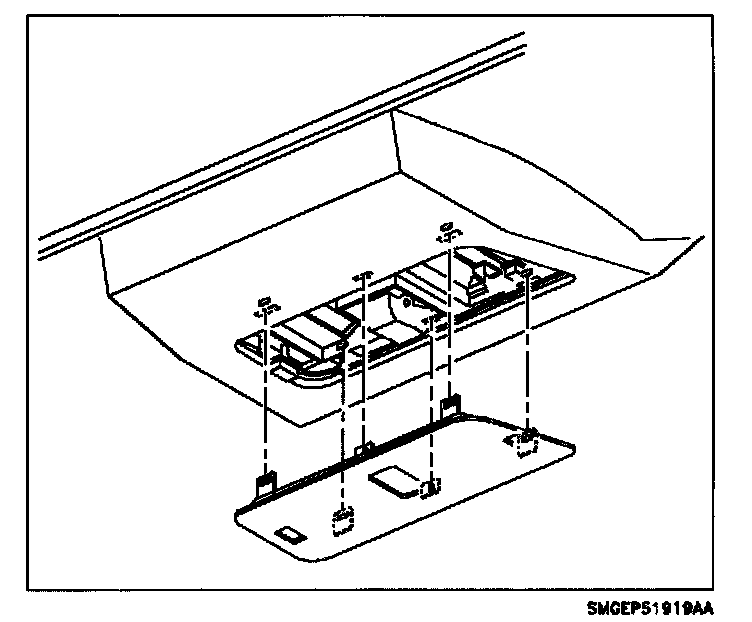

4. Install map lamp lens and bezel assembly into the roof console.
