Ignition Switch - Installation

1. Position new ignition and start switch (P/N 21024682) to ignition module assembly and install two screws and tighten.

Torque: 2 - 3 Nm (18 - 27 in.lbs.)

2. Connect electrical connector to ignition and start switch.

Ignition Switch: Installation:

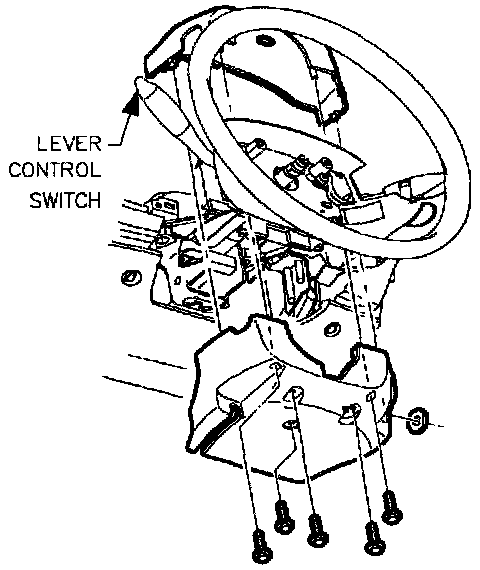

3. Position upper and lower steering column shrouds to steering column and install two upper-to-lower steering column shroud screws and three lower steering column shroud-to-steering column screws.
4. Install ignition lock cylinder into ignition module.




5. Route hood release cable through I/P, then install hood release cable to lever.

Ignition Switch: Installation:

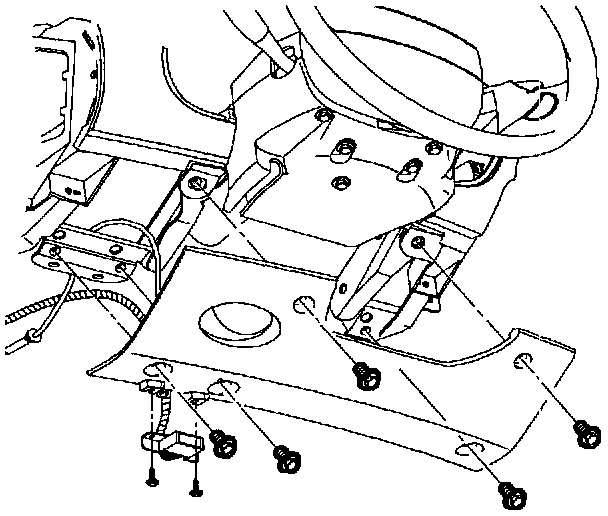

6. Install steering column filler panel and Data Link Connector (DLC).
7. Install and torque five screws.

Torque: 2.2 Nm (20 in.lbs.)

8. Turn ignition switch to LOCK position and remove key.
9. Enable the SIR system. (Refer to Enabling the SIR System in Diagrams/Diagnostic Aids/General Troubleshooting Procedures/The SIR System.) Diagnostic Aids
