Actuator Resistance Chart

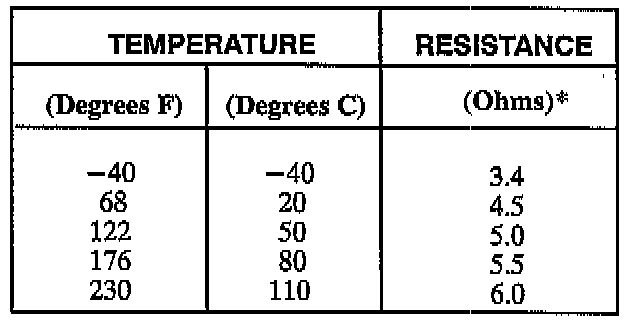

Actuator Resistance Chart:

These values may vary slightly. When an actuator is suspected to be causing a problem, an accurate way of checking resistance is to compare the suspect actuator value to the resistance value of the other actuators. Values should be within 1 Ohm of each other.
