Ignition System Specifications

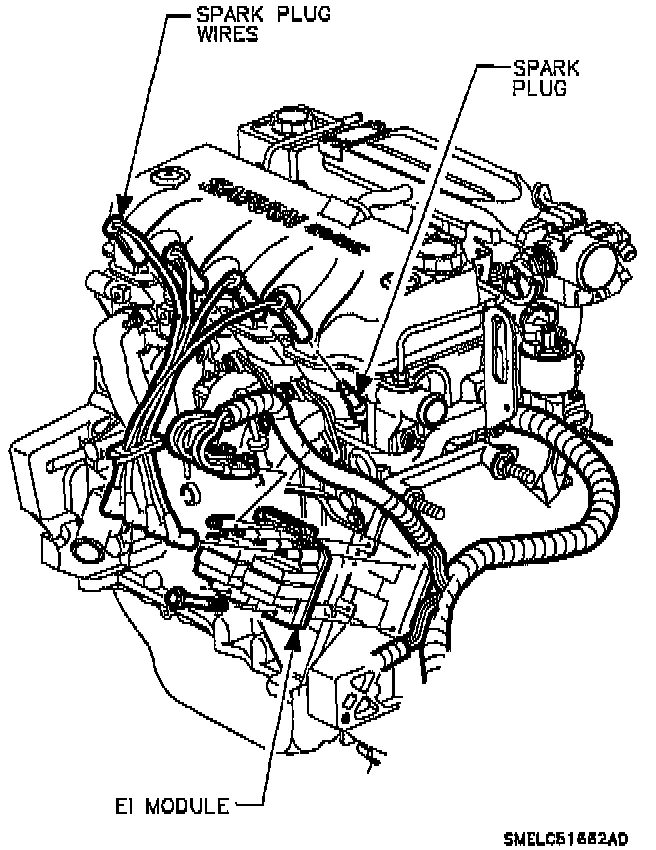

Electronic Ignition Components - SOHC:

EI Module Connection Order:

IGNITION SYSTEM SPECIFICATIONS:

Spark Plugs
Gap .040 inch
Torque 27 N.m
Replace 30,000 miles

NOTE: Always use spark plugs coated with the anti-seize compound on the threads and coat insulator to prevent spark plug boot from sticking.

Firing order = 1-3-4-2

Tower-to-tower coil resistance 7 - 10k ohms

Spark plug wire resistance below 12k ohms

Crankshaft position sensor 700-900 ohms
