Disabling the SIR System

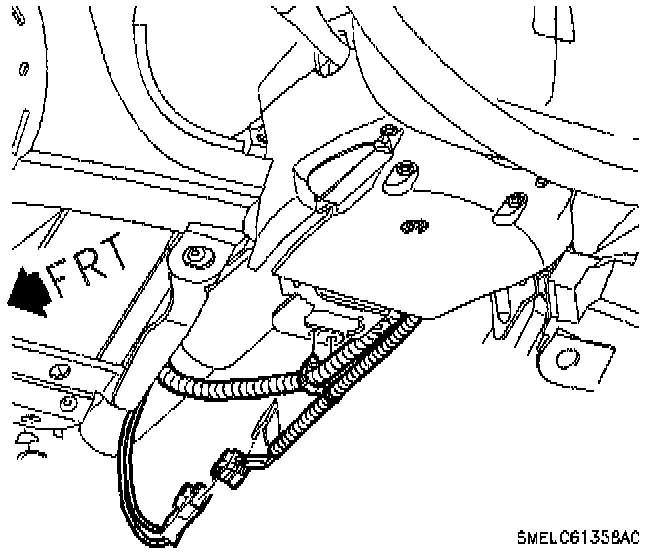

Yellow Two-way SIR Connector - Driver Side Under Steering Console:

1. Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.
2. Turn ignition switch to the LOCK position and remove key.
3. Remove AIR BAG fuse from I/P junction block.

IMPORTANT: With the AIR BAG fuse removed and ignition switch ON, the AIR BAG warning lamp will be On. This is normal operation and does not indicate a SIR system malfunction.

4. Remove connector position assurance (CPA) device and disconnect yellow two-way connector located near the base of the steering column.

Dash Trim Panel Removal:

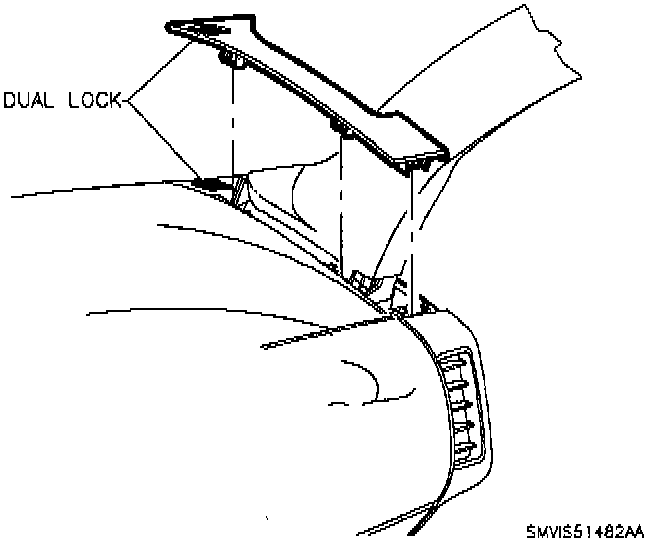

5. Remove upper trim panel extensions by carefully lifting up at clip locations, starting at the rear above end cap.

Upper Dash Trim Panel:

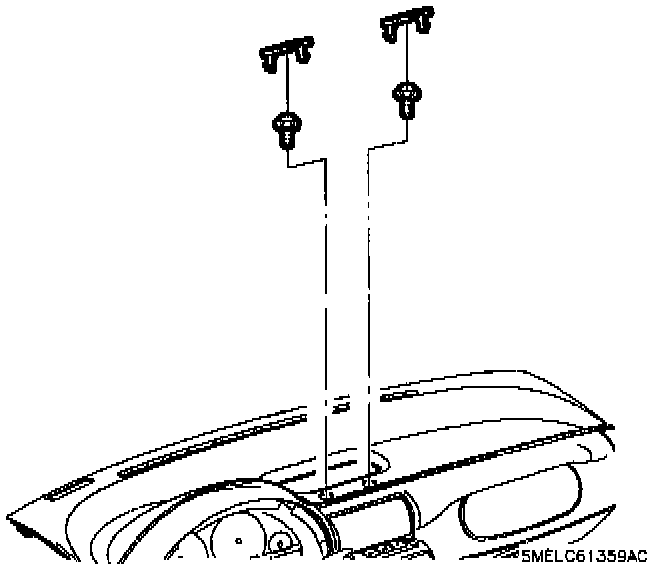

6. Remove upper trim panel screw caps by carefully prying with a small flat head screwdriver.
7. Remove upper trim panel screws.

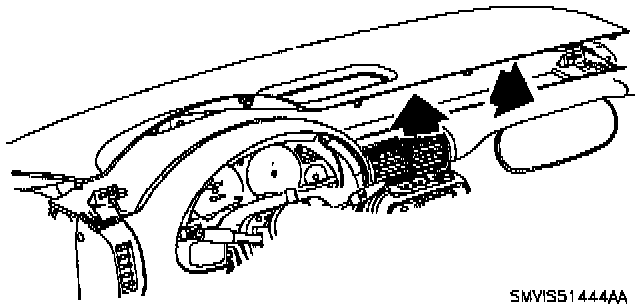

Disengaging Dash Panel:

8. Lift upper trim panel at clip locations on rear edge to disengage clips.
9. Pull panel rearward out of clips at bottom of windshield.

IMPORTANT: Be careful when removing or replacing upper trim panel not to damage VIN plate.

10. Remove upper trim panel.

Upper Dash Trim Panel:

11. Remove upper trim panel insulator.

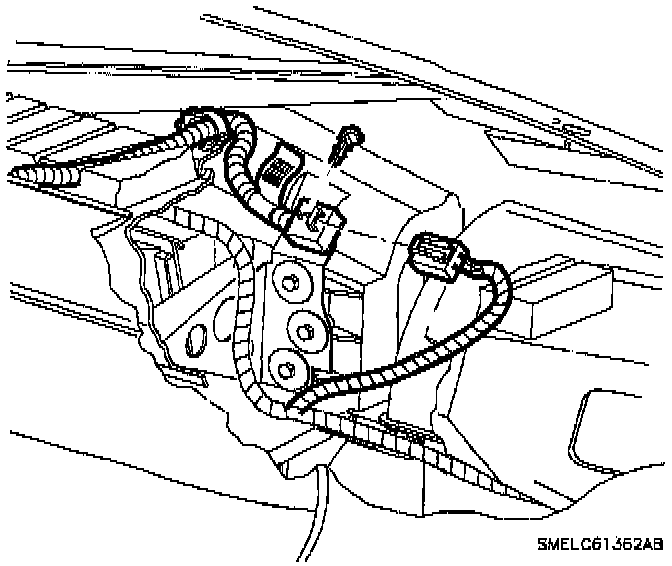

Yellow Two-way SIR Connector - Passenger Side:

12. Remove connector position assurance (CPA) device and disconnect yellow two-way connector located on pigtail from passenger inflator module.
