Sunroof Module Sealer - All Models

IMPORTANT:
Forcing butyl sealer through the drive cable tube holes in the module will restrict the water drainage system of the sunroof module.

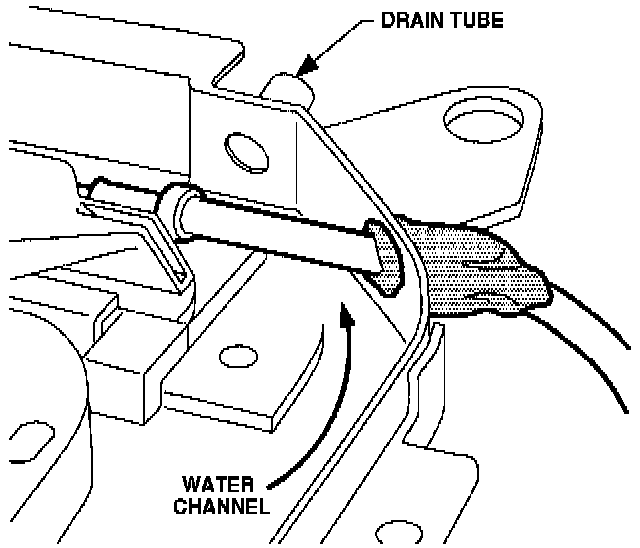

1. With headliner removed from previous leak detection, inspect butyl sealer that is placed around copper drive cable tubes as they exit the front of the module for water leaks. If the water leak occurs from this area, use a thumb-grade butyl to add to the area until the leak is corrected.

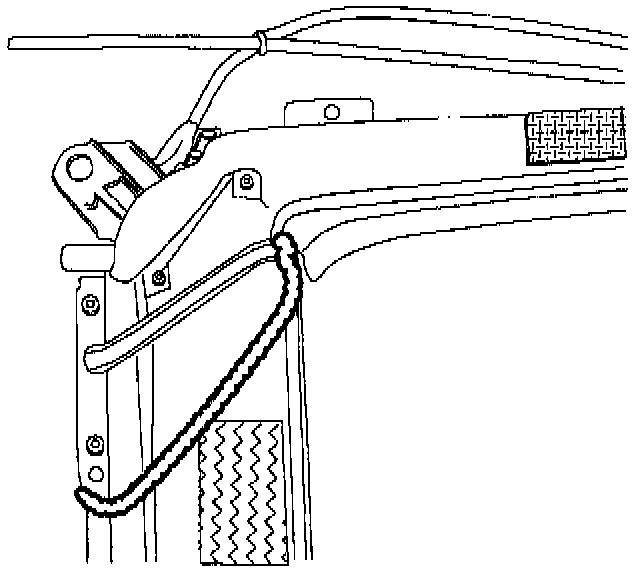

2. Inspect for leakage where the sides of the sunroof module are joined to the front of the module. Inspect for cracked module. If no cracks are present, apply a bead of Kent Industries Quik Leak Check, P/N 10510 (or equivalent) as shown in the illustration. If cracks are present, replace module.
