Circuit Diagnosis
BulbsVisually inspect the bulb. Cheek the resistance through the bulb.
Replace as needed.

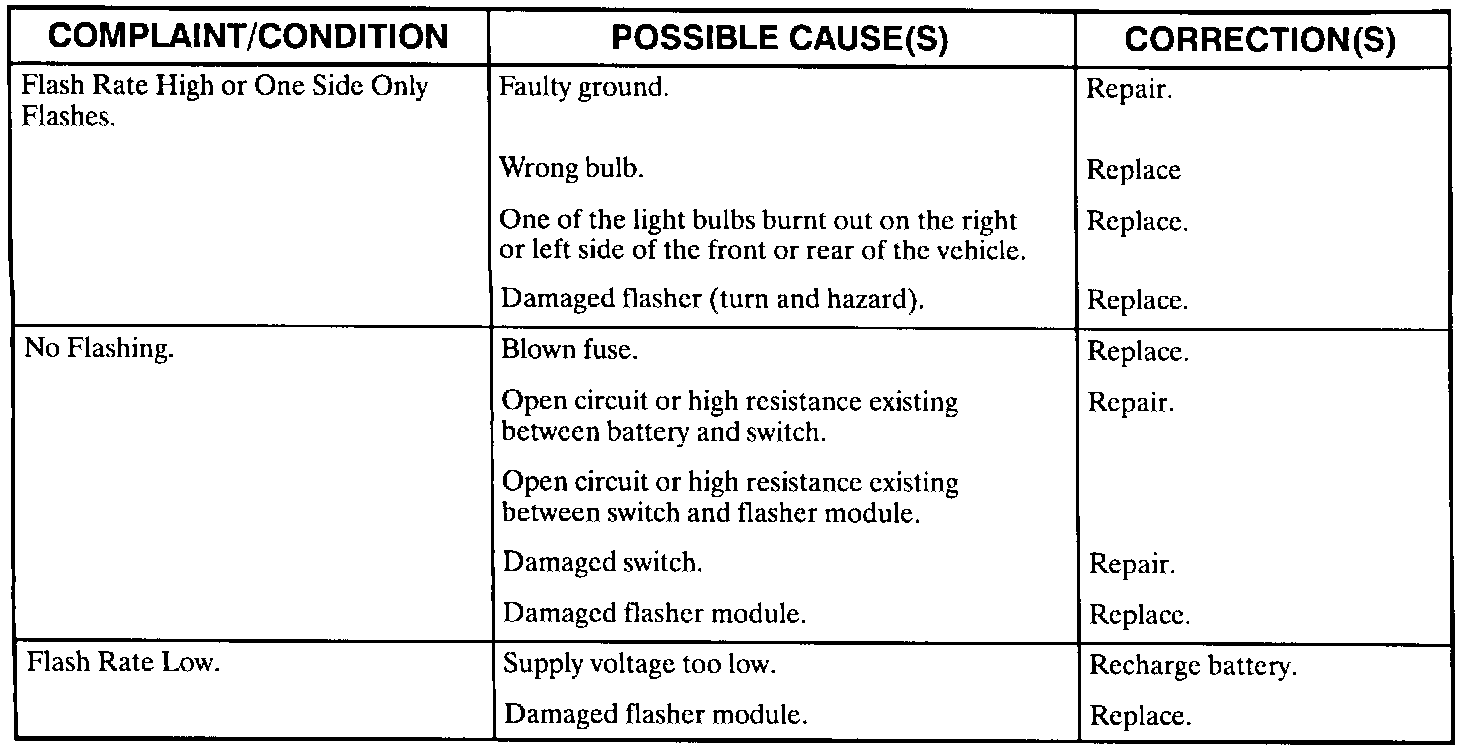

If this component is good, go to the next item indicated on the Complaint-Condition Chart.
Headlamp Switch
Refer to "Lever Combination Switch (LCS)" for testing. Testing and Inspection
Repair/replace as needed.
If this component is good go to the next item indicated on the Complaint-Condition Chart.
Flasher Module
