Home >> Saturn >> 1999 >> SL2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Compact Disc Player (CD) >> System Diagram >> CD Jumper Inline (M) >> Jumper Harness

Jumper Harness

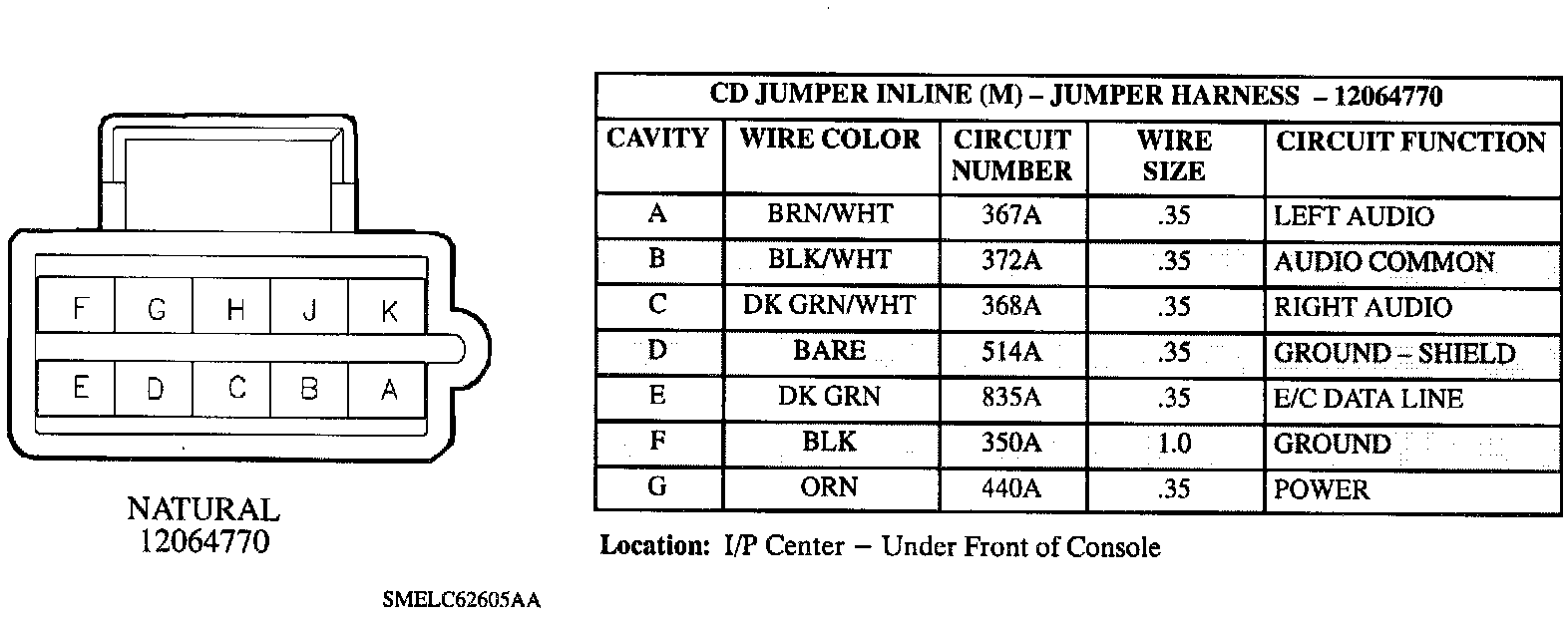

CD Jumper Inline (M) - Jumper Harness:
