Home >> Saturn >> 1999 >> SL2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Left Hand Drive >> Fuses >> DEFOG

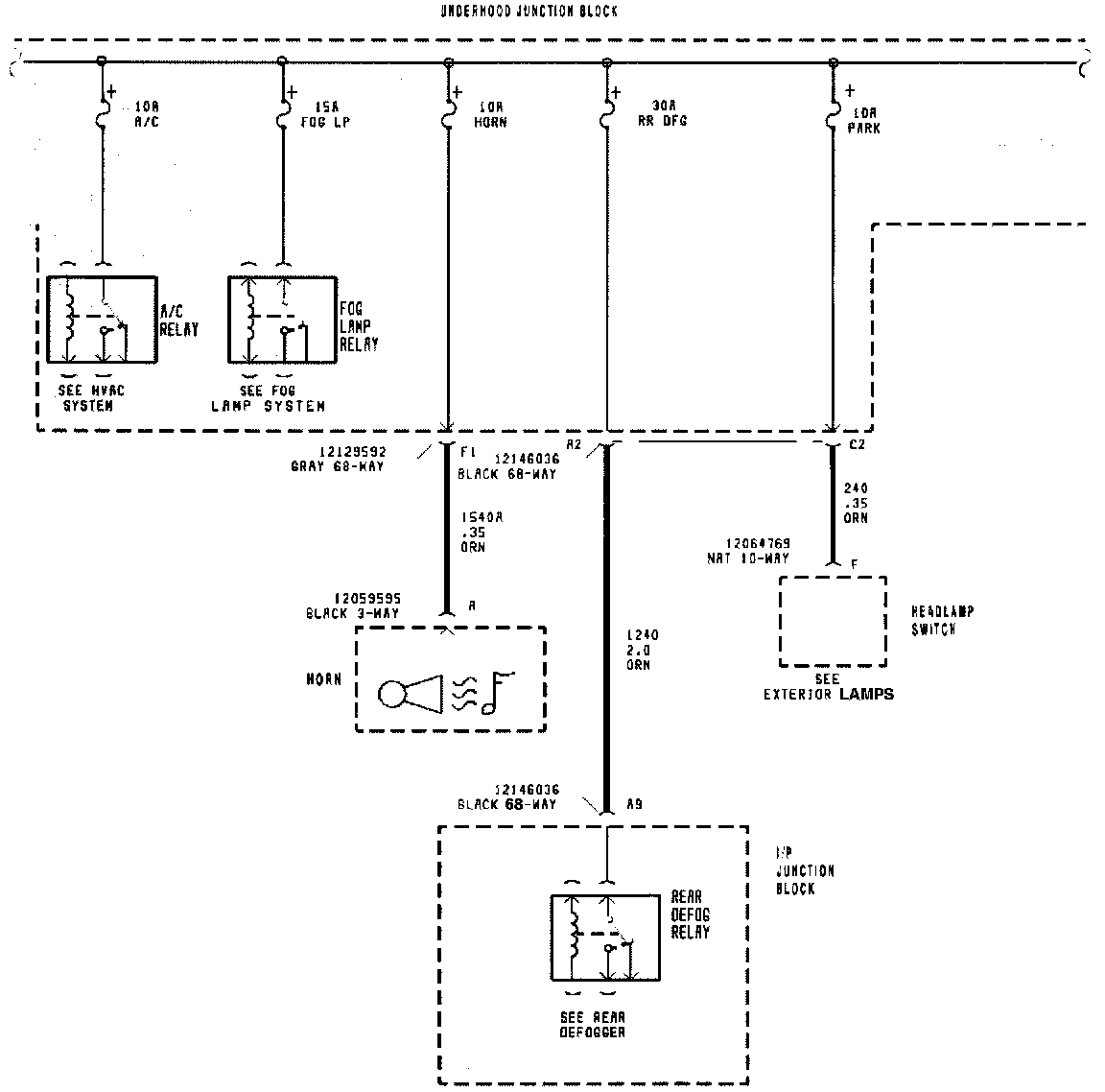

DEFOG

Fuse Block Details (Junction Blocks): Power Distribution:
