Passenger Assist Handle: Service and Repair
Assist Handle ReplacementRemoval Procedure 1.

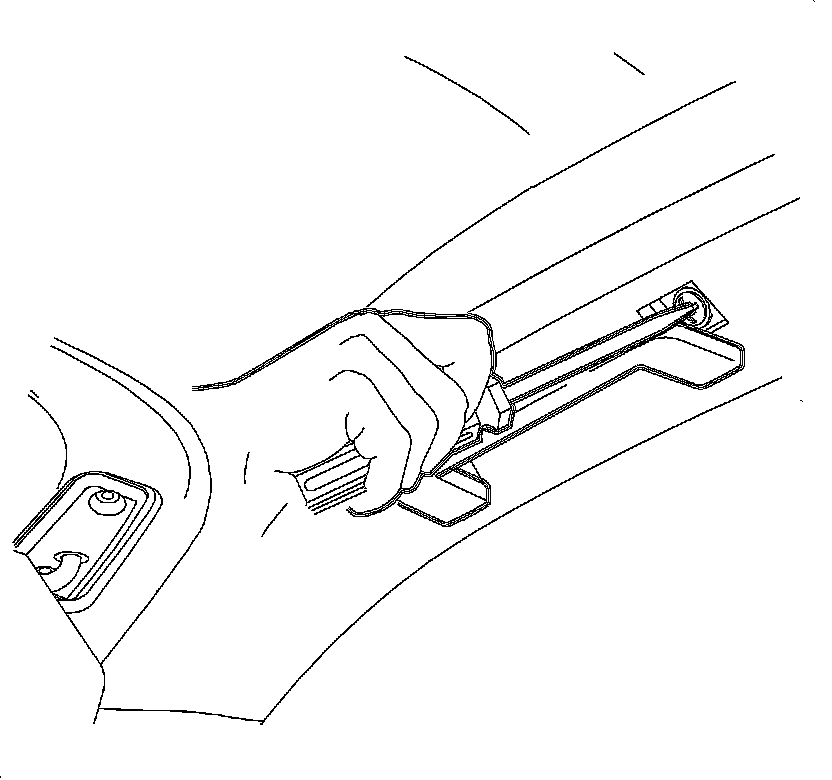

Pull down the assist handle to expose the assist handle fasteners.
2.
Remove the fasteners and assist handle.
Installation ProcedureNotice: Refer to Fastener Notice in Cautions and Notices.
Position the assist handle and tighten the fasteners.
Tighten the assist handle fasteners to 16 N.m (142 lb in).
