Fuel Tank Heat Shield


REMOVAL

CAUTION: MAKE SURE VEHICLE IS PROPERLY SUPPORTED AND SQUARELY POSITIONED ON HOIST.





1. Raise vehicle on hoist.

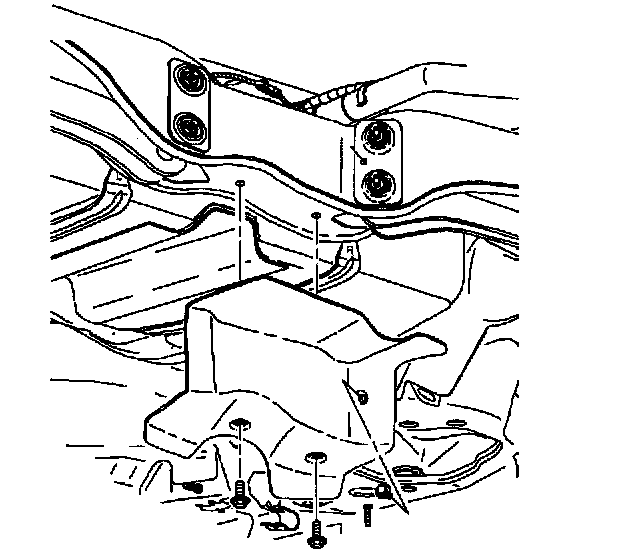

2. Remove fuel tank heat shield to rear suspension support fasteners.
3. Remove heat shield from vehicle.

INSTALLATION

1. Install heat shield and tighten fasteners.
^ Torque: 8 Nm (71 inch lbs.)
2. Lower vehicle from hoist.
