Accelerator Pedal

REMOVAL

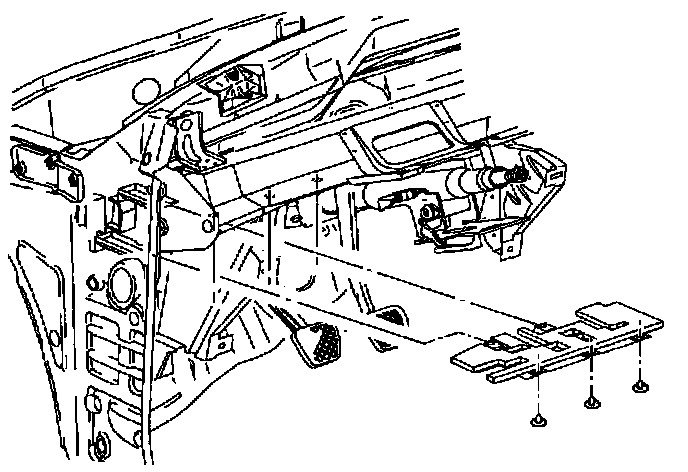

1. Remove lower I/P hush panel.




2. Disconnect accelerator cable from pedal by sliding cable upward.

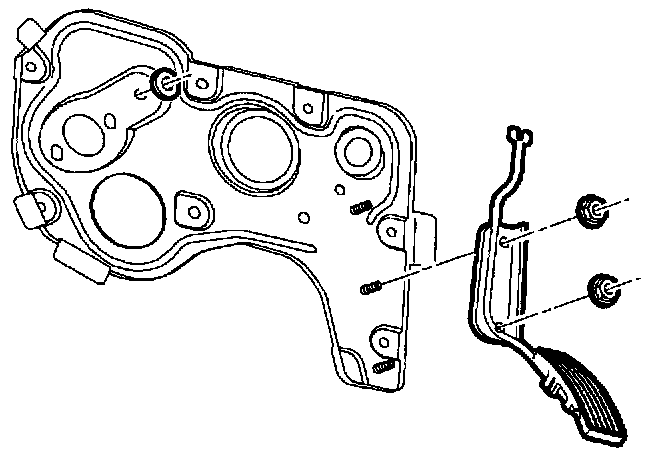

3. Remove accelerator pedal to bulkhead fasteners.
4. Remove accelerator pedal from vehicle.

INSTALLATION
1. Install accelerator pedal into vehicle and tighten fasteners.

Torque: 10 N.m (89 in-lbs)




2. Install accelerator pedal cable.




3. Install lower I/P hush panel.
