Steering Column Trim Covers

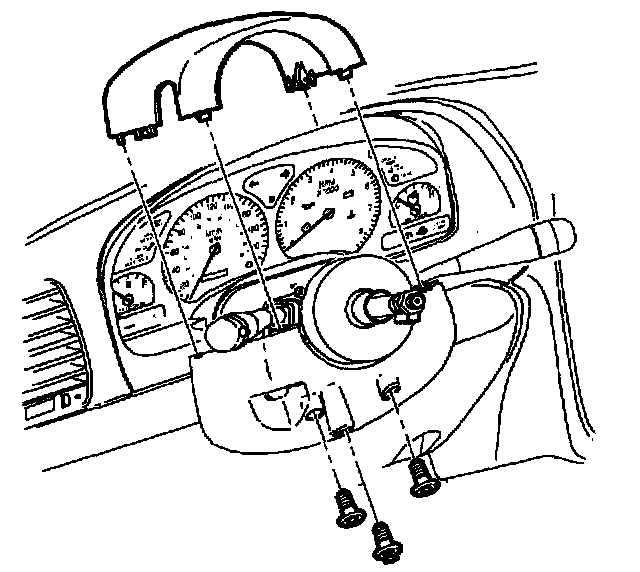

REMOVAL 1.
Remove three lower
steering column trim cover to steering column attachment screws.
2.
Remove upper
steering column trim cover.
3.

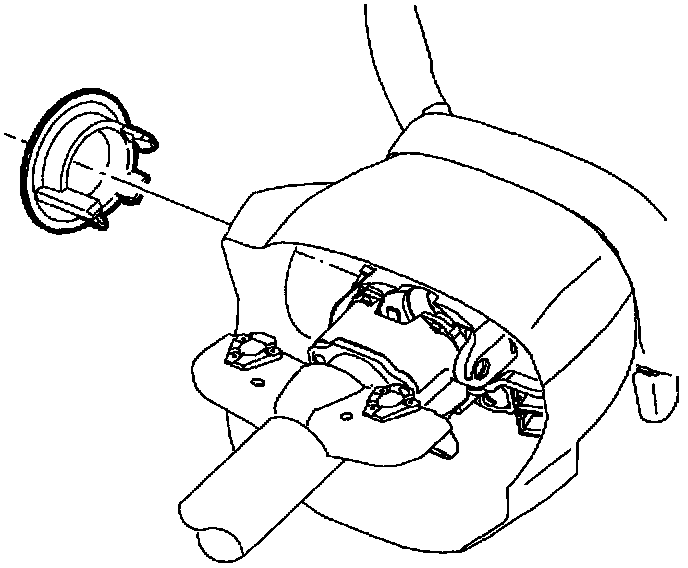

Remove ignition switch bezel.
4.
Remove lower
steering column trim cover.
INSTALLATION 1.
Install
steering column trim cover and attachment fasteners.
Torque: 4 N.m (35 in-lbs) 2.
Install ignition switch bezel.
