Radio Fade Ring - AM/FM Stereo Radio




REMOVAL
1. Adjust FADE ring to the middle position (where sound is balanced equally between all speakers).
2. Remove BASS/TREB knob radio.
3. Remove FADE ring.

INSTALLATION
1. Install FADE ring over BASS/TREB knob post with the FADE ring in the middle position (where the sound is balanced equally between all speakers.)
2. Install BASS/TREB knob.

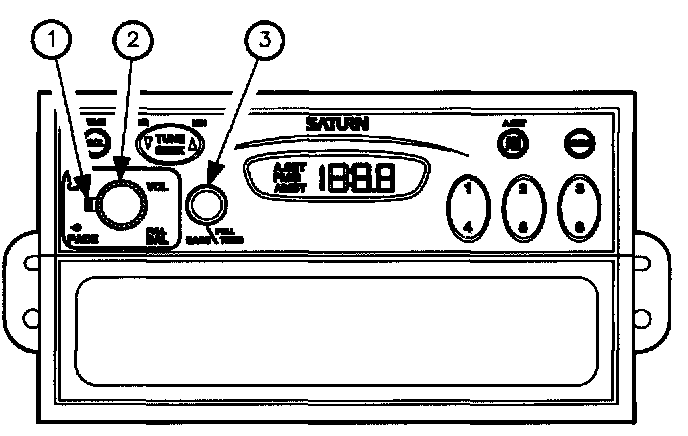

(1) FADE Ring (AM/FM Stereo Radio)
(2) VOL Knob (AM/FM Stereo Radio)
(3) BASS/TREB Knob (AM/FM Stereo Radio)
(4) VOL Knob (AM/FM Stereo with In-Dash CD Player and AM/FM Stereo with Cassette Player and AM/FM stereo with Cassette and In-Dash CD Player)
(5) BASS/TREB/FADE/BAL Knob (AM/FM Stereo with Cassette Player and AM/FM Stereo with Cassette and In-Dash CD Player)
