Glove Compartment: Service and Repair

REMOVAL




1. Open I/P compartment door.
2. Turn right and left I/P compartment door stop assemblies to release door and compartment assembly from I/P retainer assembly.

IMPORTANT: Lower I/P door pins are on the right and left outside edges at base of compartment.

3. Push lower I/P door pins from the outside of door to inside I/P compartment.
4. Remove I/P compartment.

DISASSEMBLY




1. Remove screws attaching inside compartment to I/P compartment door.
2. Push I/P door pins from inside of compartment to outside of I/P compartment door.
3. Remove I/P compartment from I/P compartment door.
4. Remove I/P compartment retainer bushing:
^ Pry between I/P compartment retainer bushing and I/P compartment door with small screwdriver.

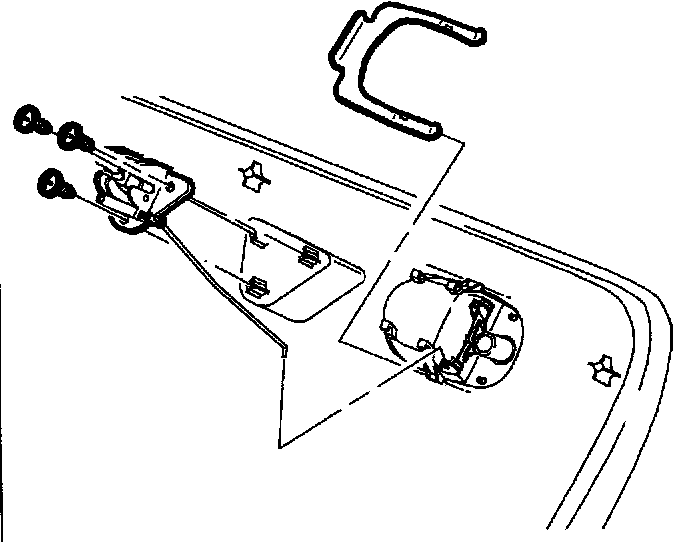

5. Remove I/P compartment latch:
a. Remove screws attaching latch to I/P compartment door.
b. Remove rod from retainers on handle assembly.




c. Remove latch and rod assembly from lip compartment door.
6. Remove U-clip from handle assembly.
7. Remove handle assembly from I/P compartment door.

ASSEMBLY




1. Position handle assembly in I/P compartment door.
2. Install U-clip under retaining tabs on handle assembly.
3. Install latch and rod assembly to handle assembly.
4. Position latch and rod assembly to I/P compartment door.
5. Install screws to attach latch and rod assembly to I/P compartment door.




6. Install I/P compartment door retainer bushing:
a. Position I/P compartment door retainer bushings in I/P compartment door holes.
b. Push I/P compartment door retainer bushings in until seated.
7. Position I/P compartment to I/P compartment door.
8. Install screws.
9. Push I/P compartment door pins from outside I/P door to inside I/P compartment.

INSTALLATION




1. Position I/P compartment door assembly to retainer assembly.
2. Install I/P compartment door pins into instrument panel retainer assembly.
3. Lift I/P compartment enough to install I/P compartment door stop assemblies.
4. Close I/P compartment door.
