15. Front Cover Oil Seal Assembly Replacement

- Tools Required
- SA9104E Front Crank Seal Replacer

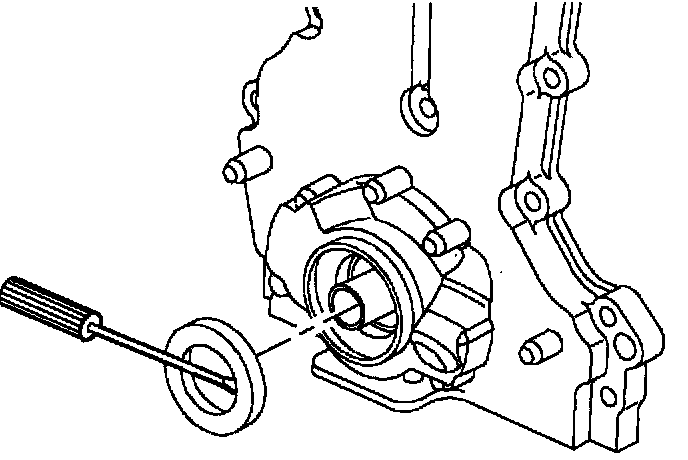

1. Using a punch or a screwdriver, knock out the oil seal.
a. Clean the seal bore and oil drain back passage way.
b. Make sure the oil drain back passage is free of RTV and debris.





2. Install oil seal:
a. Using seal installer service tool SA9104E and an arbor press, install a new oil seal. Never tap on the seal or seal installer with a hammer.
b. Apply a thin film of oil to the new seal lip.
