Blower Motor Switch: Service and Repair

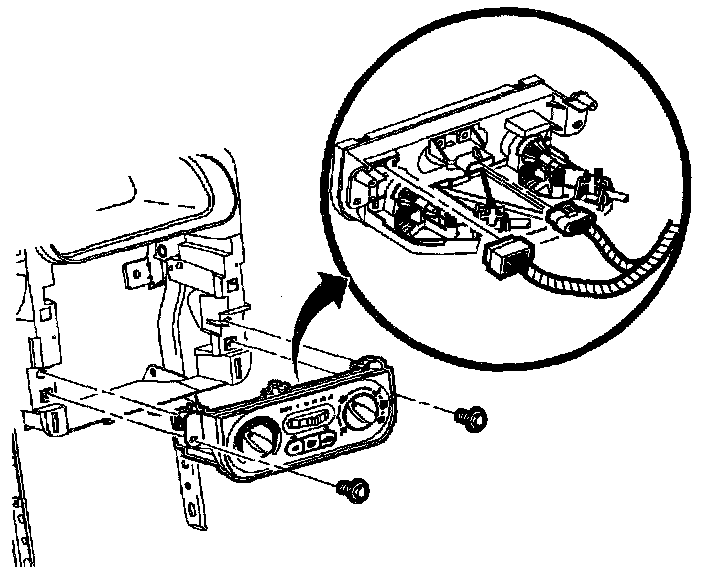

BLOWER MOTOR SWITCHREMOVAL
1. Remove HVAC controller.
2. Remove blower motor switch screws.
3. Remove blower motor switch.
INSTALLATION
1. Install blower motor switch and screws.
2. Install HVAC controller.
Torque: 2.5 N.m (22 in-lbs)
