Cargo Lamp: Service and Repair

REMOVAL

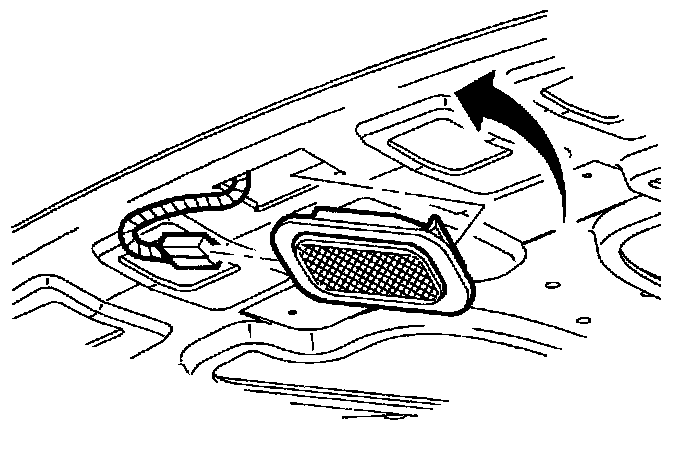

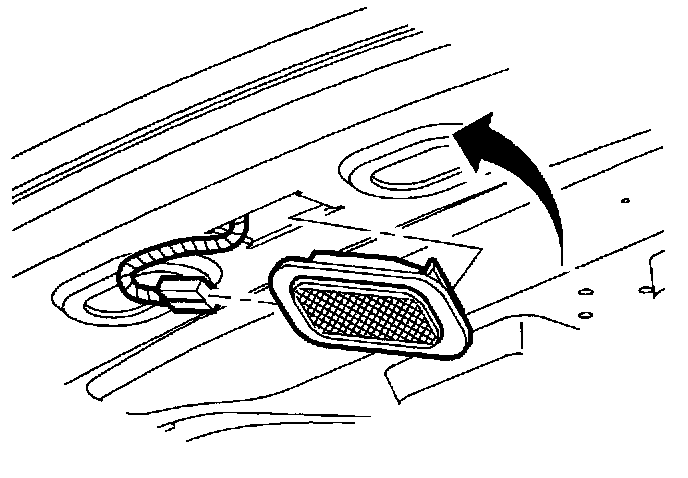

1. Insert a small flat head screwdriver into slot located on the edge of the cargo lamp lens.
2. Apply pressure to disengage clip.
3. Remove lamp lens to disconnect wire harness.

INSTALLATION




1. Connect cargo lamp wire harness.
2. Position cargo lamp lens and apply pressure to engage clip.
