Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saturn
>>
2000
>>
SL2 L4-1.9L DOHC VIN 7
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Drive Axles, Bearings and Joints
>>
Axle Shaft Assembly
>>
Diagrams

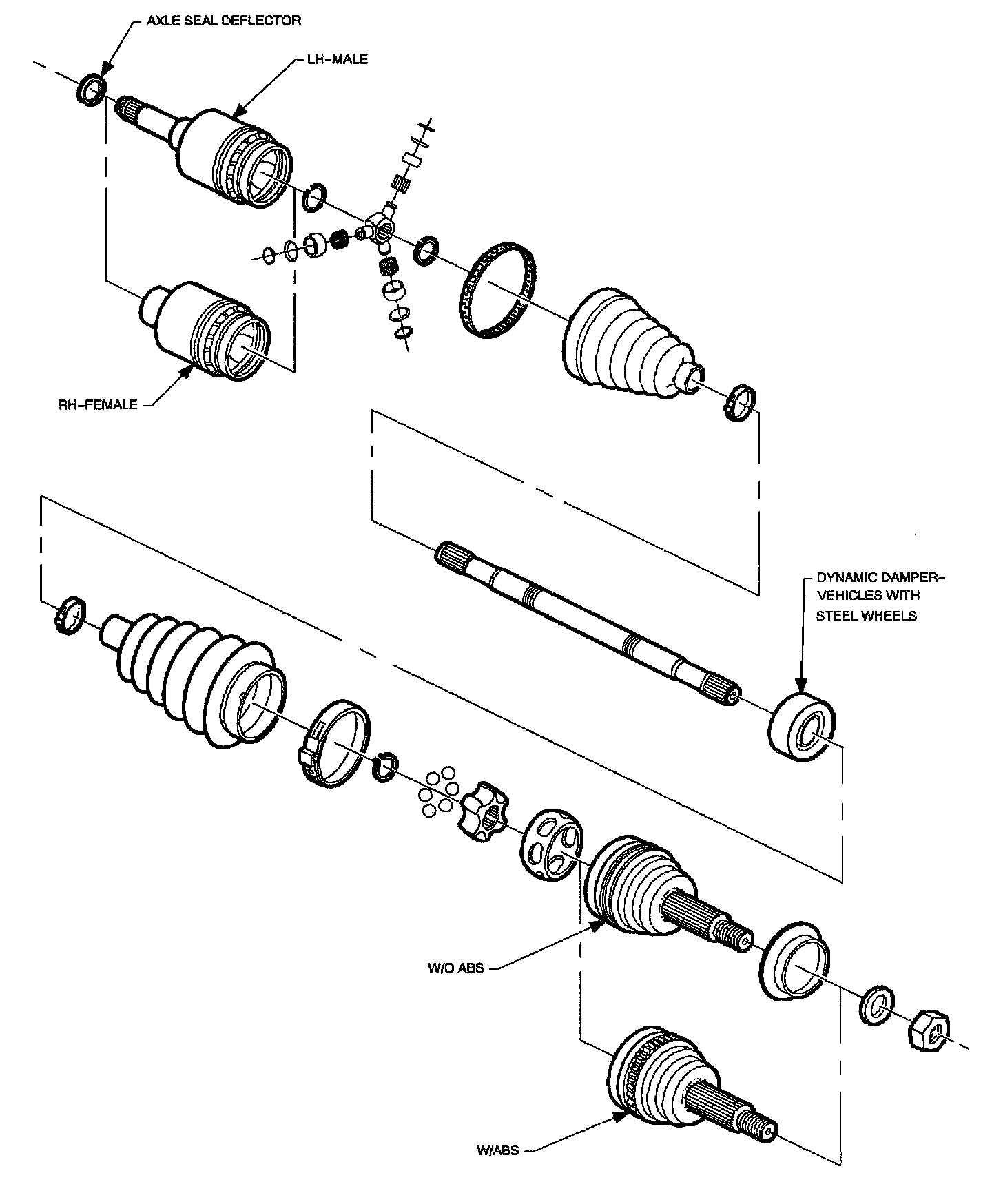

Axle Shaft Assembly: Diagrams
