Tightening Sequence

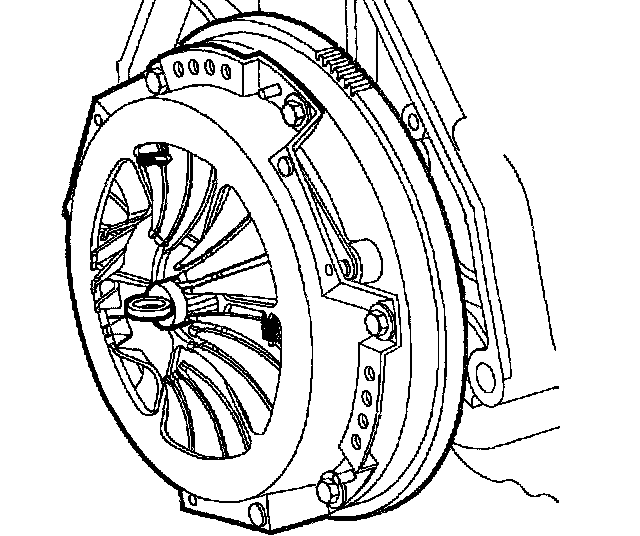

Tighten clutch housing cover assembly bolts using a progressive crisscross pattern to prevent warping of the cover stamping.
- Torque:
Clutch Housing Cover-to-Flywheel Bolts: 25 Nm (18 ft. lbs.)
