Rear Compartment Front Trim Panel Replacement

Rear Compartment Front Trim Panel Replacement

Removal Procedure




1. Open the liftgate.
2. Flip up the side wings and lift the rear load floor from the vehicle.

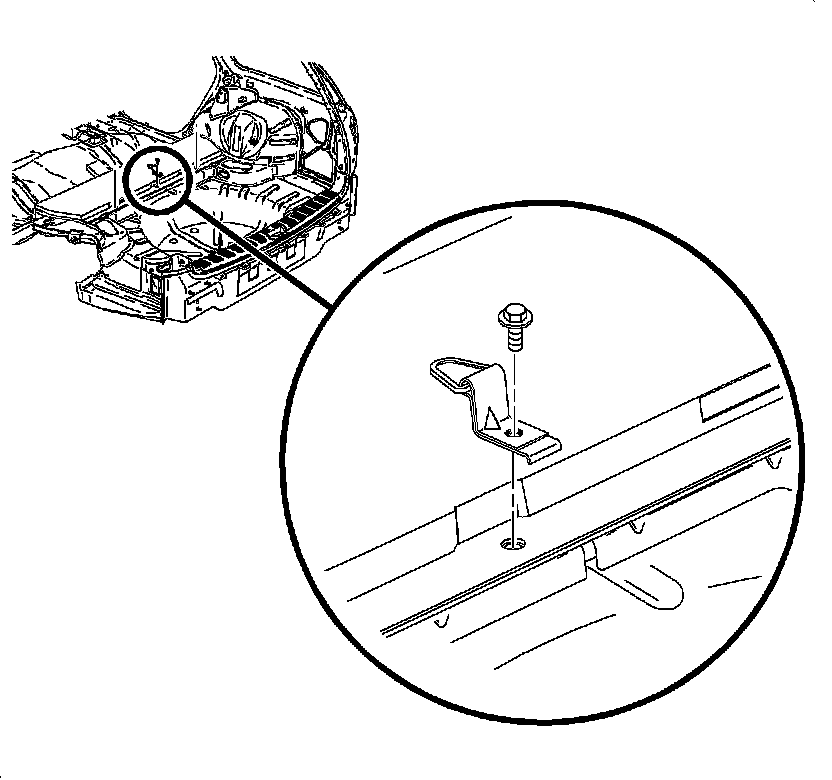

3. Remove the child restraint bracket fasteners and remove the bracket.




4. Lower the rear seat backs.

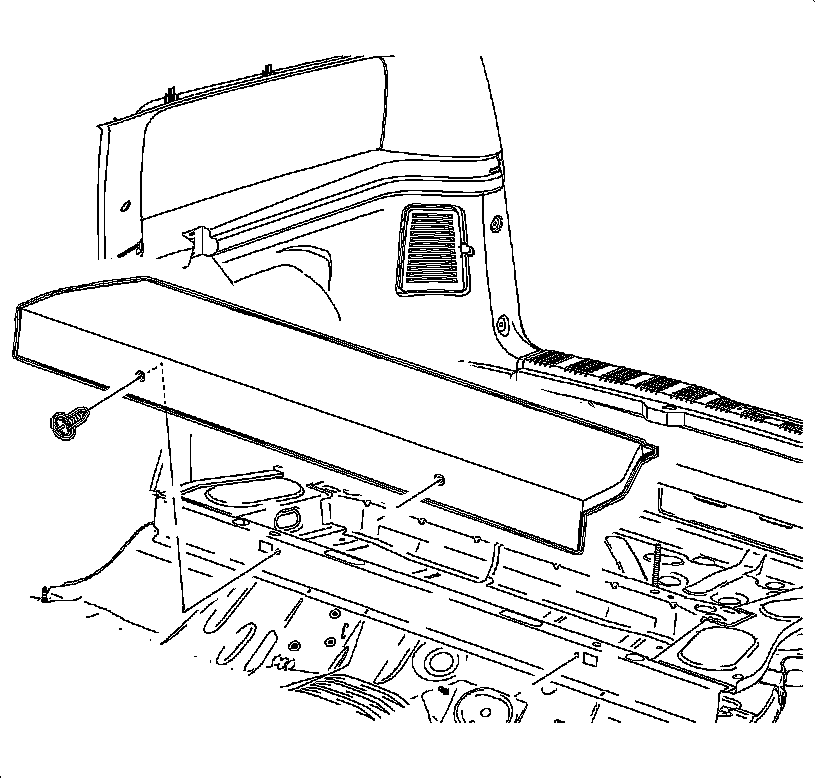

5. Remove the front load floor retainers and remove the load floor.

Installation Procedure




1. Position the load floor into the vehicle.
2. Raise the rear seat backs.





Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the child restraint bracket with the fasteners.

Tighten the fasteners to 20 Nm (15 lb ft).




4. Install the rear load floor.
5. Close the liftgate.
