Antenna Check

CHECKING RADIO ANTENNA MAST
Unplug antenna lead-in at back of radio and plug a test antenna into radio. Make sure test antenna base is grounded to the vehicle chassis. Do not touch the mast. Check radio reception in an area away from tall buildings, metal structures, power lines, fluorescent lighting, and power tools. Tune to high and low ends of the dial on both AM and FM, checking weak and strong station reception. Refer to "System Performance Check - Noise or Poor Reception." If reception is OK, the problem exists with antenna (verify the antenna mast is at the appropriate torque) and/or its lead-in antenna cable. If reception is still poor with test antenna, check for aftermarket equipment that may be causing complaint. System Performance Check - Noise Or Poor Reception

CHECKING ANTENNA LEAD-IN CABLES

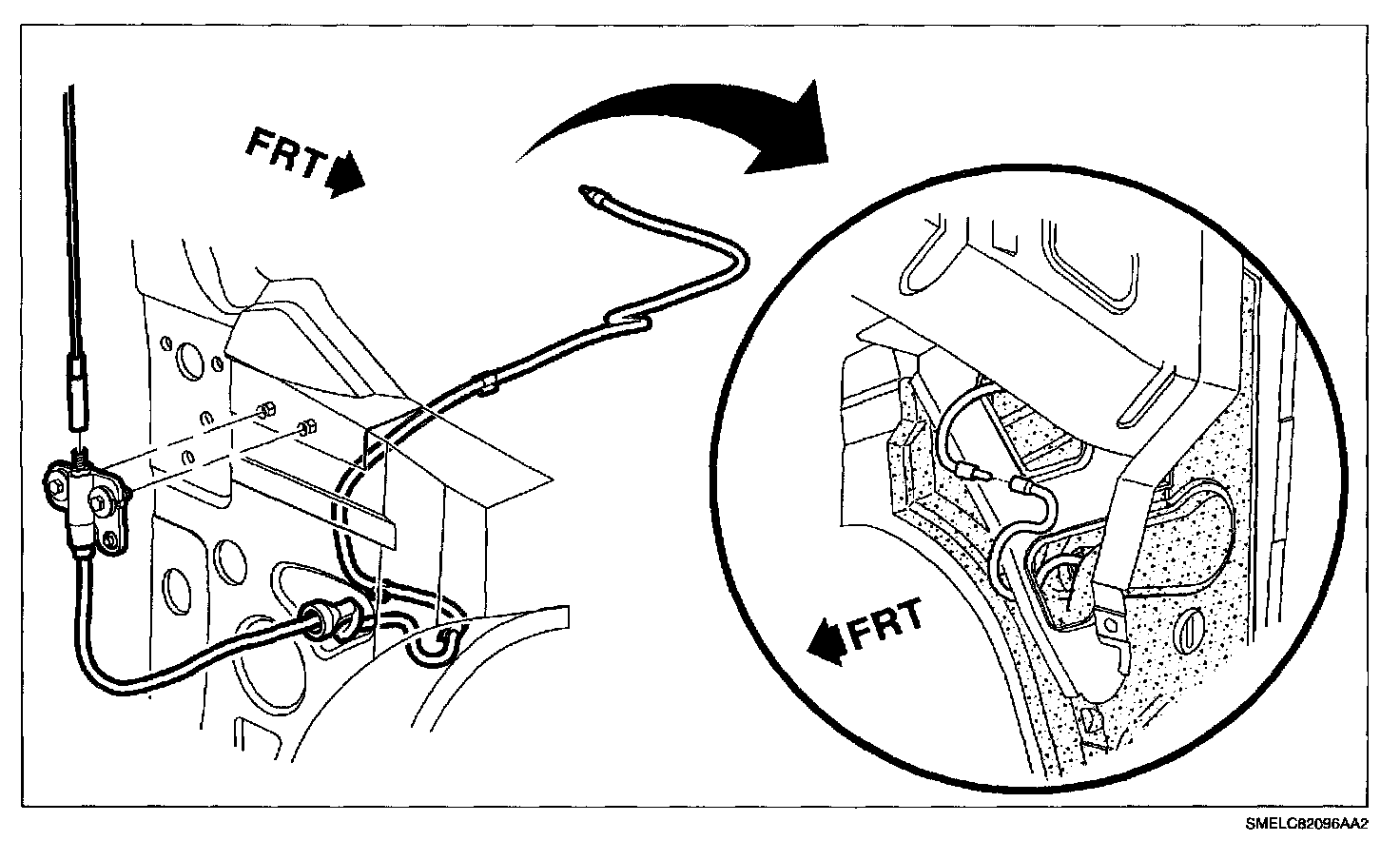

In case of continued reception or noise complaints, always check the lead-in antenna cable with a digital multimeter (refer to the illustration and chart). If long jumper leads are not available, check center conductor continuity by jumping the antenna coax cable to ground and checking for continuity from the center conductor at radio to ground. The type of coaxial cable used is RG-62/U.

When checking resistance, cautiously wiggle the antenna lead-in tip and antenna coax cable. Consistent readings from table should always be obtained. If not, some portion of the antenna lead-in is intermittent and antenna lead-in should be replaced. Also try:
a. Running a braided ground strap to the antenna lead-in.
b. Changing the antenna lead-in.
c. Disconnecting the antenna lead-in to check resistance.
d. Check antenna in-line connection for corrosion or poor connection.
