Removal Procedure

1. Remove hinge pillar garnish molding.

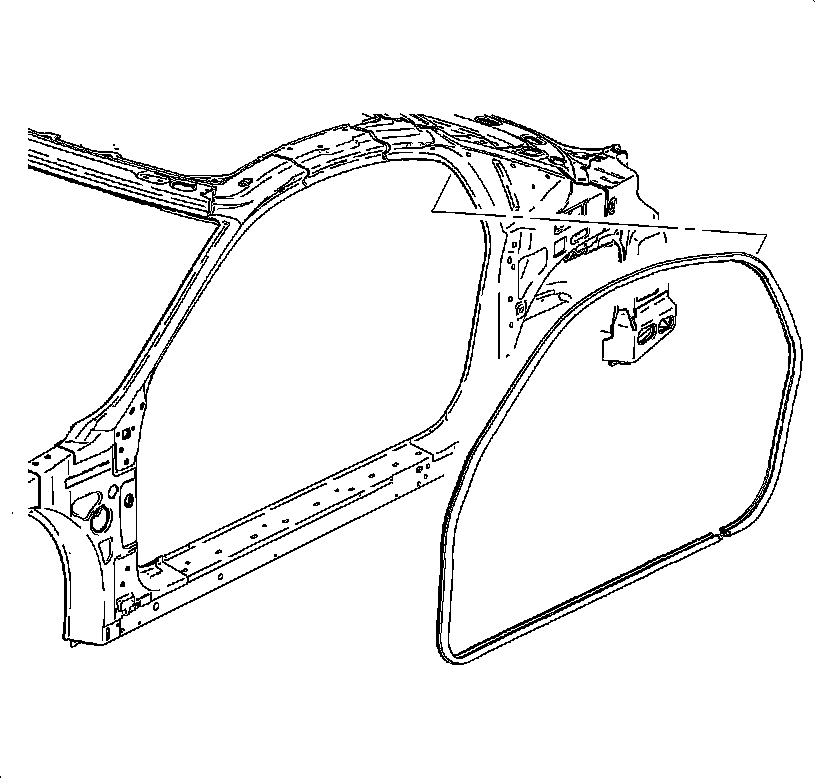

2. Noting position, slowly separate and remove weatherstrip from door opening starting at the seal joint at bottom of the door opening.

Installation Procedure

1. Clean old adhesive off of flange area.

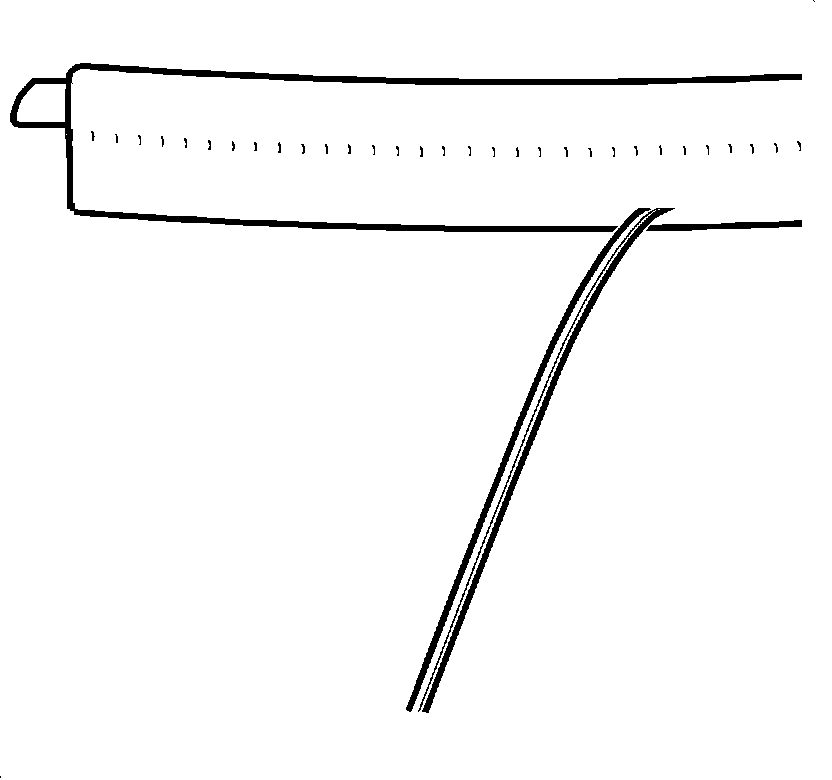

2. Remove rip-cord from new seal by pulling at the exposed end. This rip cord is a production assembly aid and is not required for service.




3. Start seal over flange area in position noted above. Press weatherstrip over flange firmly to seat it.
4. Tuck seal lip under the quarter window upper and lower garnish moldings and at the end of the instrument panel.
5. Install hinge pillar garnish molding.

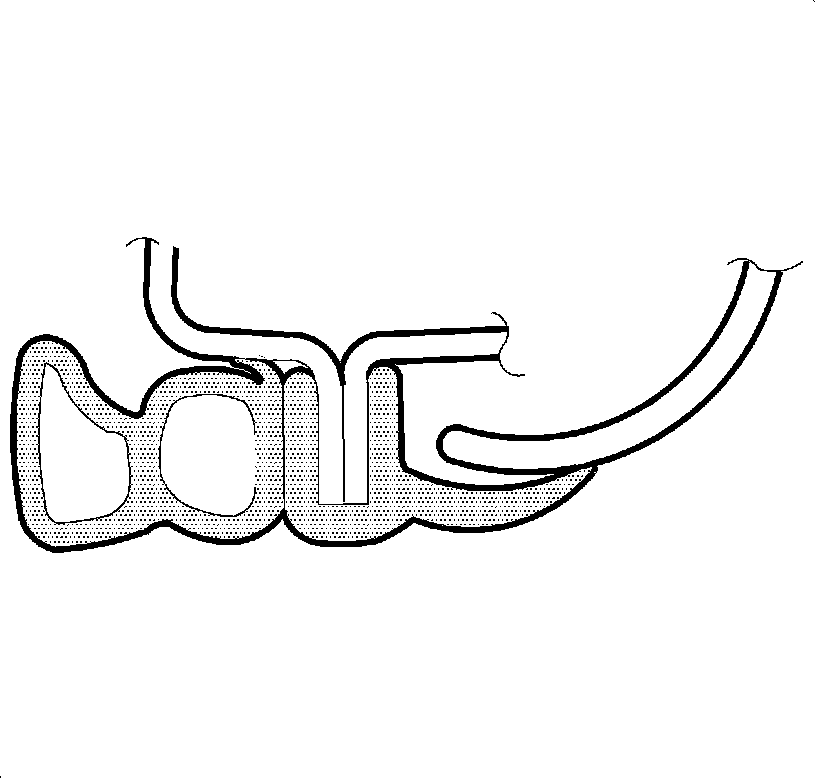

6. Verify the front door weatherstrip seal lip is covering the headliner and windshield garnish molding as shown in illustration.
