Power Mirror Switch: Service and Repair

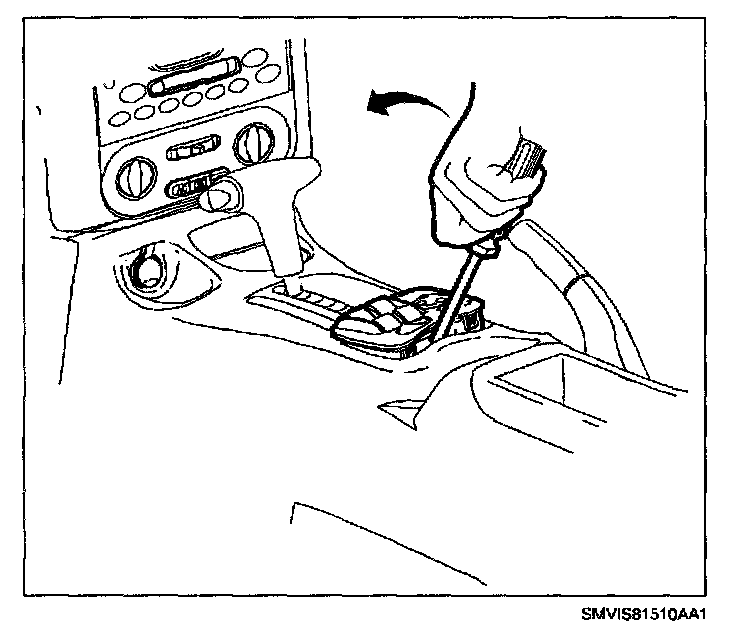

REMOVAL




1. Exert pressure on rear of power windows/mirror switch with hand.
2. Using a small flat blade screwdriver, carefully lift switch at rear retainer assembly tabs.




3. Lift switch from console.
4. Disconnect electrical connectors by locating retention tabs and disengaging connectors.

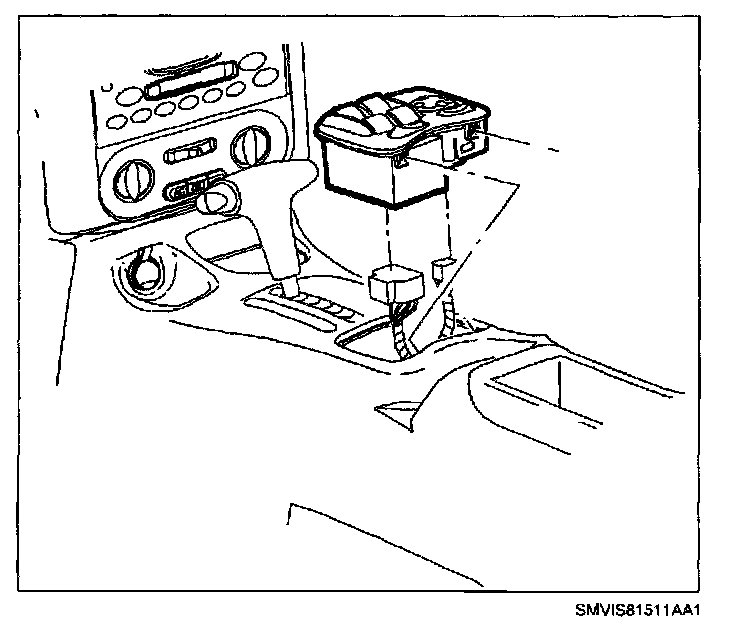

INSTALLATION




1. Connect power window/mirror switch assembly electrical connectors.
2. Start front of switch assembly into console, press down into place.
3. Check operation of all switches.
