Sunroof / Moonroof: Service and Repair

Sunroof Locator Blocks Replacement

Removal Procedure




1. Open the sunroof.

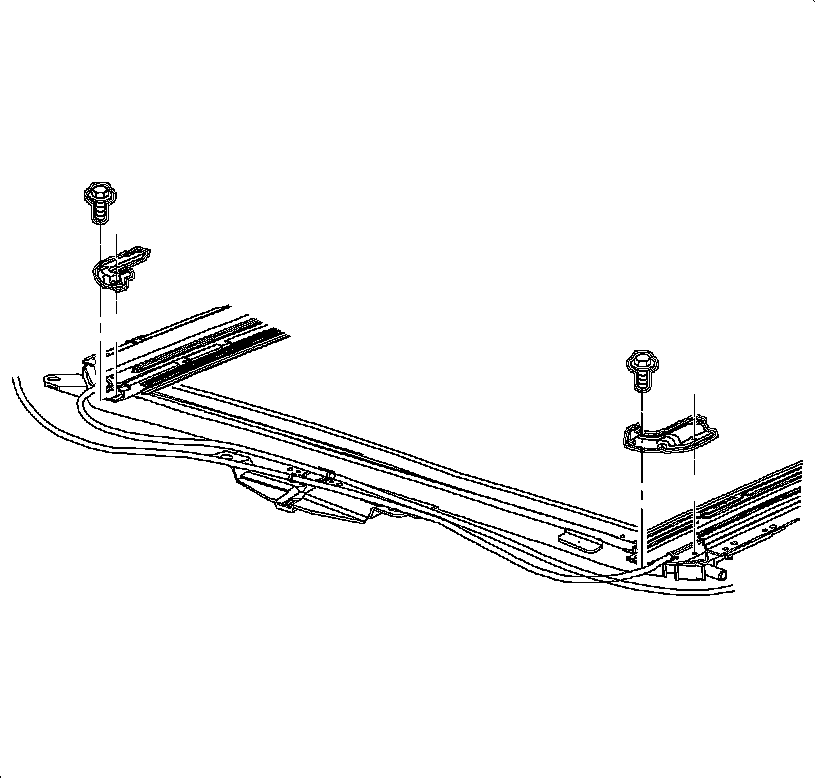

2. Remove the locator block fastening screws.
3. Remove the locator block using the needle-nose pliers.

Installation Procedure




1. Apply the Loctite 242(R) threadlocker, or equivalent, to the screws. Ensure that the last few threads are covered.
2. Install the locator blocks.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the locator block fastening screws.

Tighten the sunroof locator blocks-to-sunroof module fasteners to 2 Nm (18 lb in).
