B. Install Cruise Control Module

1. Locate cruise control harness taped in I/P harness, under dash, near center console air duct. (The cruises control harness has a black 6-pin connector.)

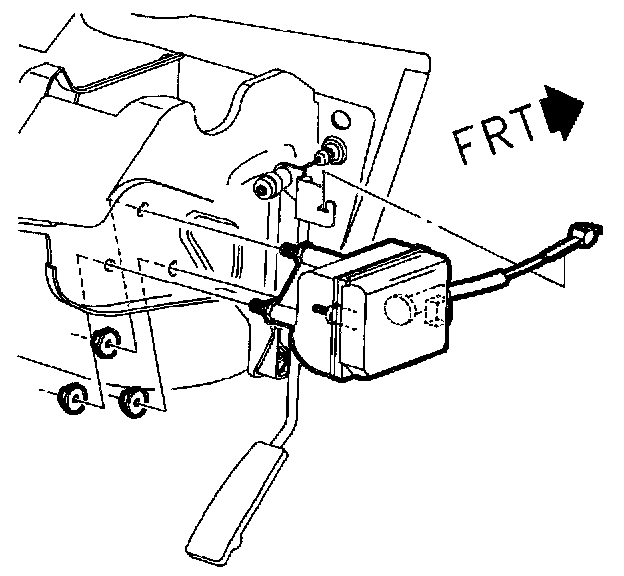

2. Install cruise control module on steering column support bracket and torque nuts.

Torque:
Cruise Control Module-to-Steering Column Bracket: 6 N.m (53 in-lbs)

3. Connect cruise control rod bracket to accelerator pedal. Snap the locating tab into the hole in the accelerator pedal.
4. Connect the cruise control module harness connector. Push in connector until a click is heard and pull back to confirm a positive engagement.
