Automatic Transmission/Transaxle

HYDRAULIC SCHEMATICS
The following are hydraulic schematics that show the hydraulic operation of automatic transaxles in each of the following ranges:
- Park
- Reverse
- Neutral
- D4/1st
- D4/2nd
- D4/3rd
- D4/4th
- D2





PARK

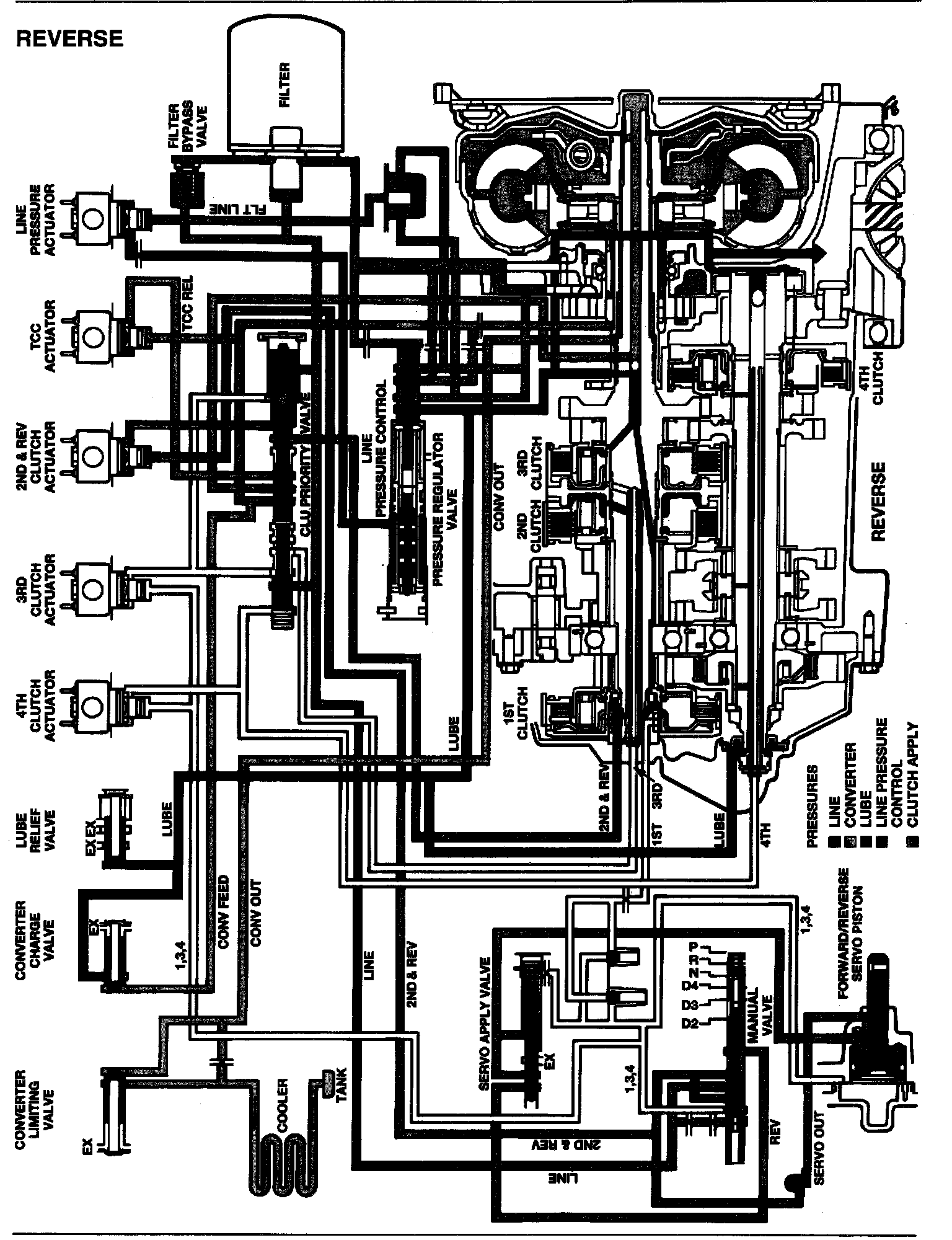

REVERSE

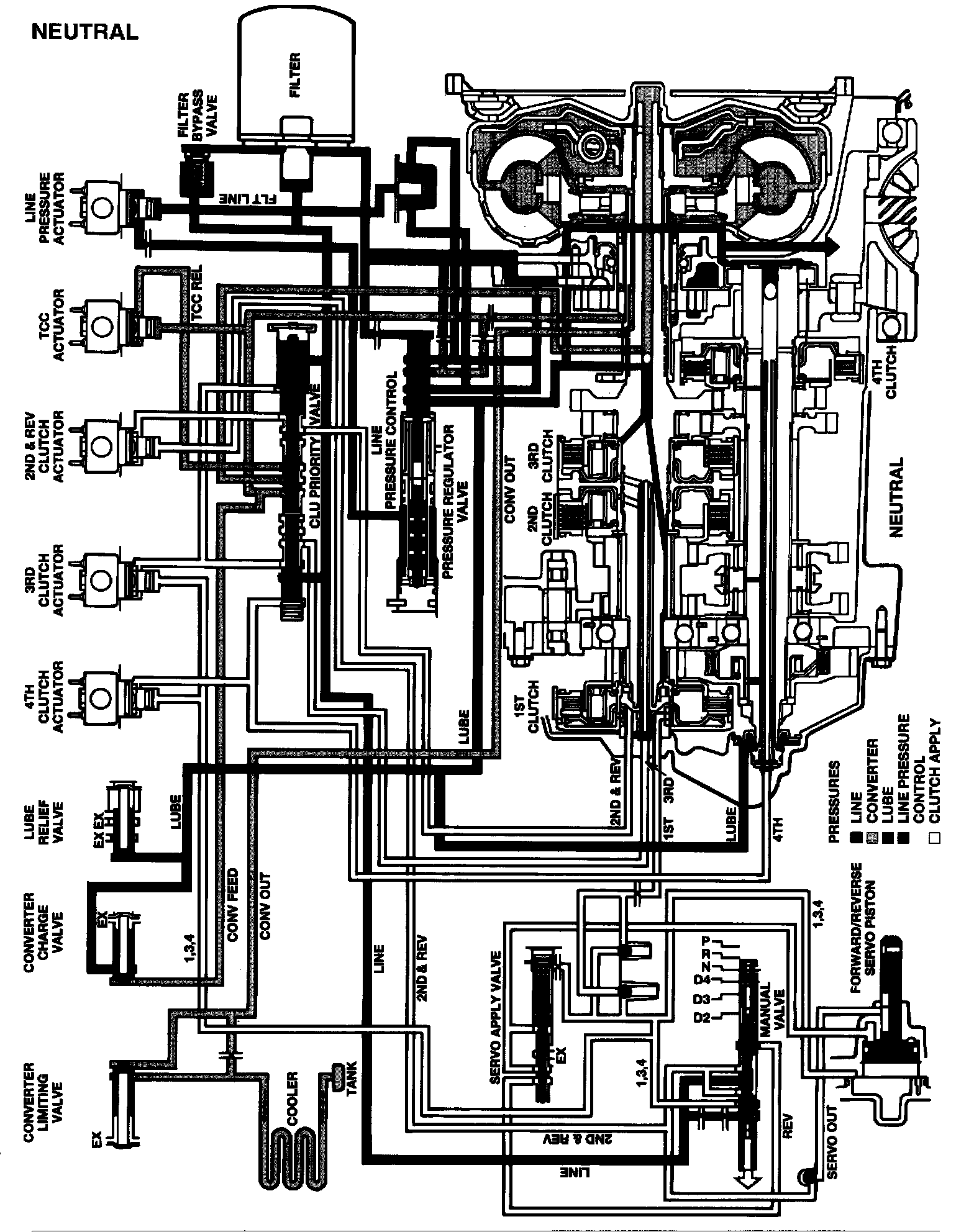

NEUTRAL





D4/1ST





D4/2ND





D4/3RD





D4/4TH

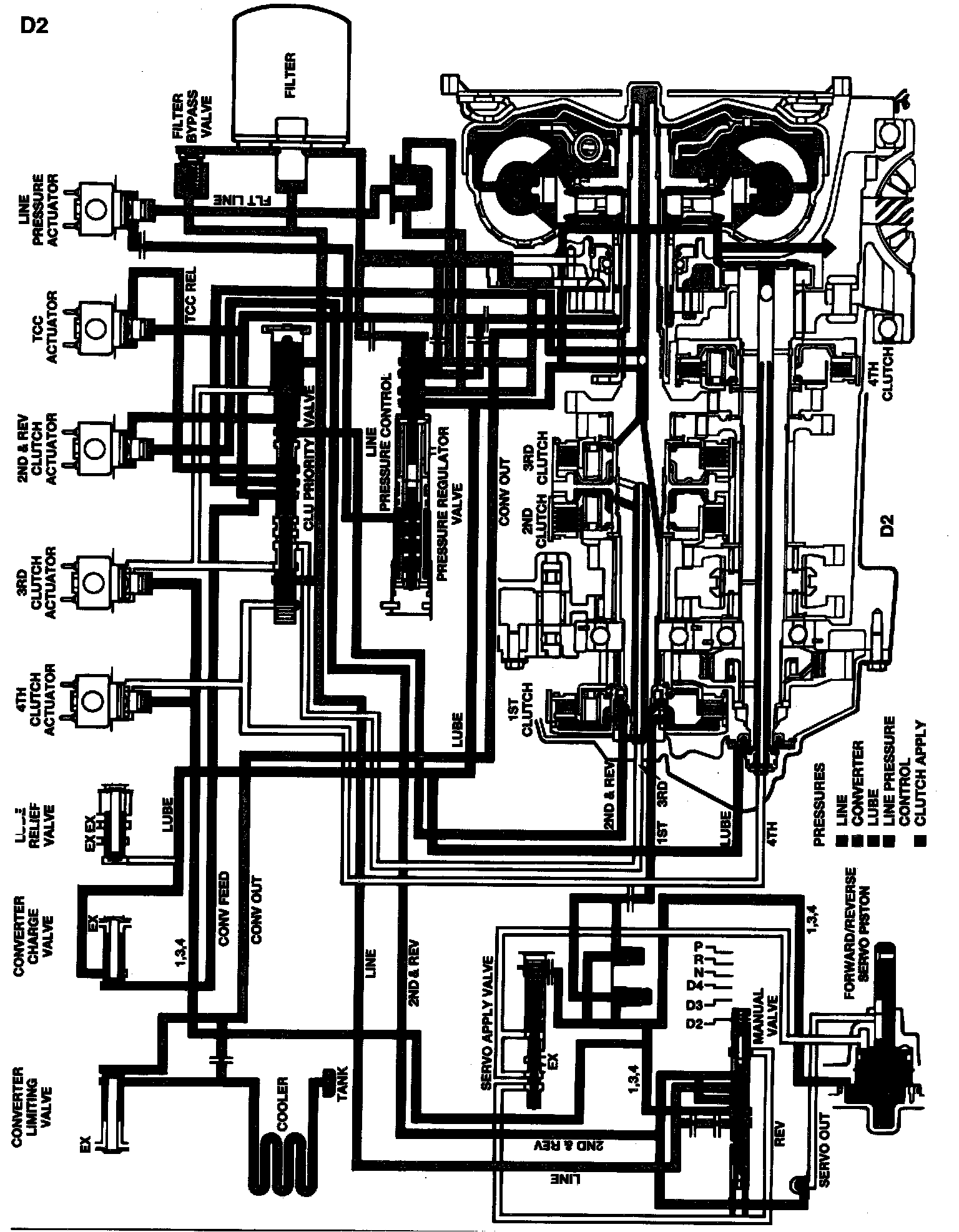

D2
