Heater Core to Pipe Hose

Removal

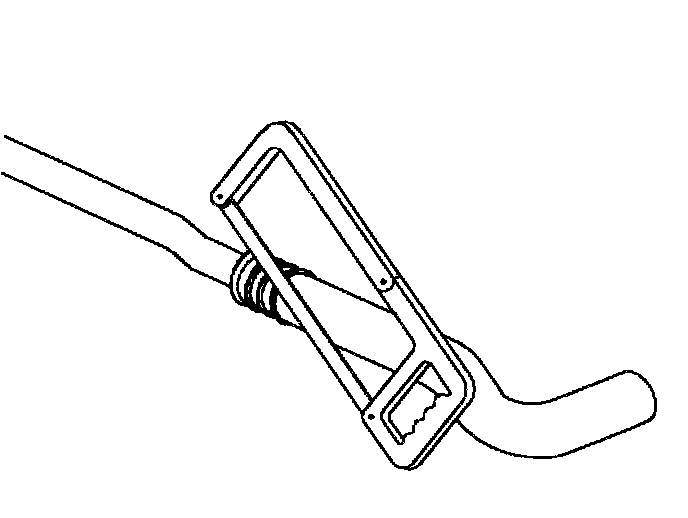

1. Use hacksaw to cut crimp ring.

NOTICE: Cut only deep enough to separate crimp ring. Take care not to cut pipe.

IMPORTANT: When cutting crimp ring, cut at 30 degree angle to centerline of hose.

2. Use a flat head screwdriver to separate and remove crimp ring from hose.
3. Remove heater hose from pipe.
