Vent Mode

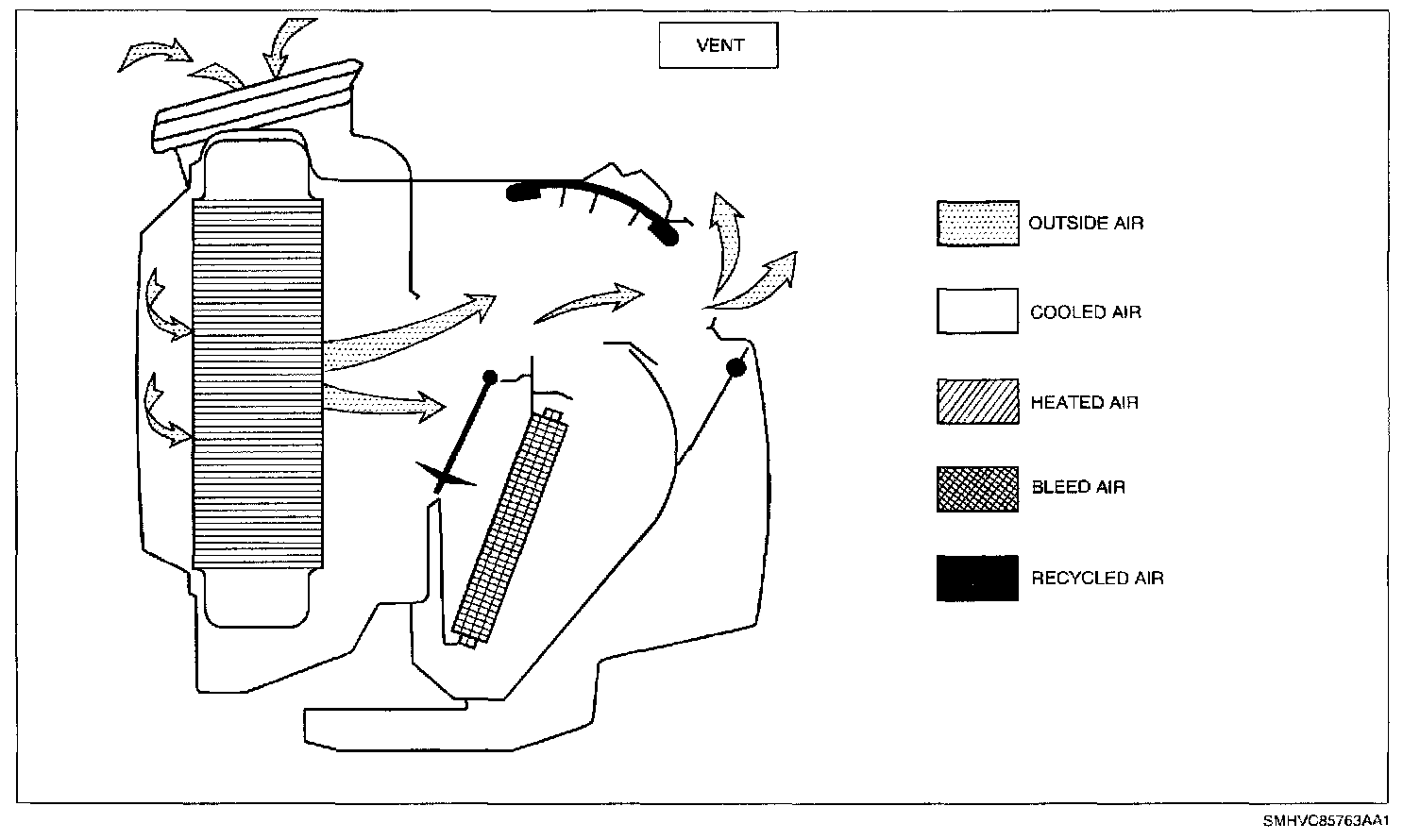

Vent Mode:

When Vent mode is selected, air enters the module and flows through the evaporator. The air then passes through the mode valve and out through the instrument panel outlets.

The air may be warmed by directing some or all to pass through the heater core by adjusting the temperature knob to the desired heat level.
